| Substrate specifications | |
| Material | High-strength PVC |
| Thickness | 0.14mm ± 0.02mm |
| Color | Blue and white checkered |
| Width | 48mm/72mm/96mm (customizable) |
| physical property | |
| Tensile strength | ≥52 N/cm |
| Extension rate | ≤190% |
| Adhesion | ≥13 N/25mm |
| Unwind force | 3-9 N/25mm |
| environmental performance | |
| Operating temperature | -20℃ to 65℃ |
| Weather resistance | up to 8 months for outdoor use |
| Ultraviolet resistance | color retention>88% after 500 hours of test |
| Security features | |
| Environmental certification | RoHS compliance |

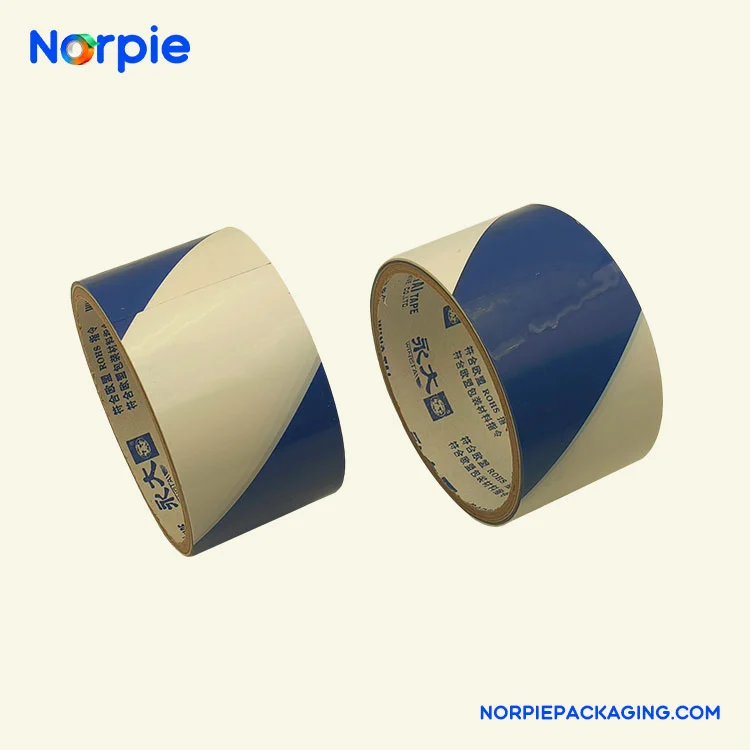

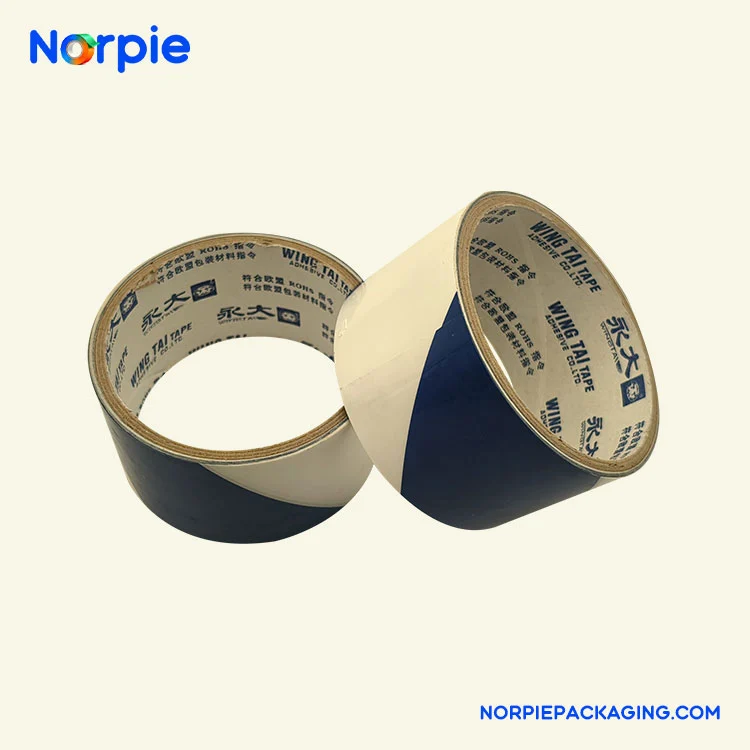

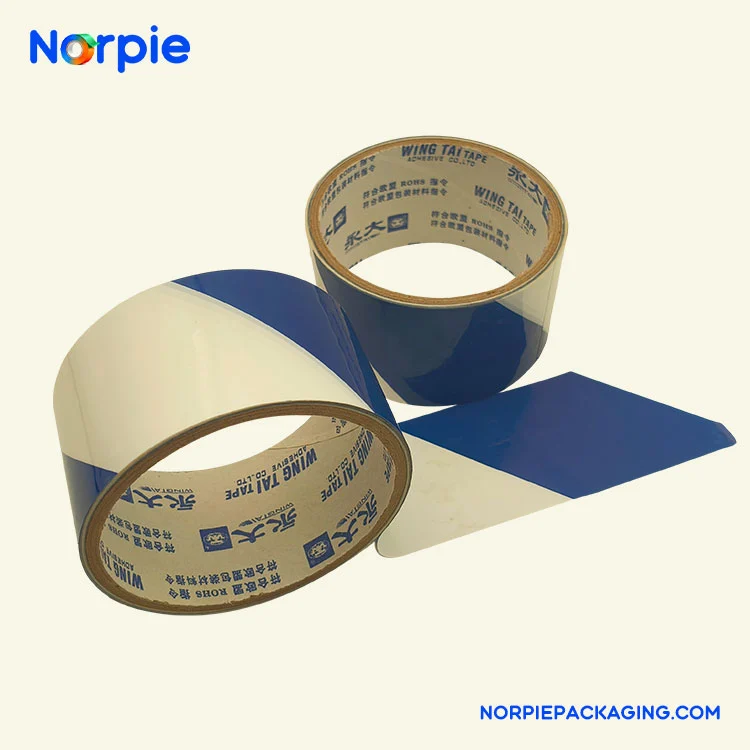

Indicative Warning Advantage
The Blue and White Warning Tape has high visual recognition and is more indicative
Complies with international standard color codes and is suitable for non-hazardous areas.
Optional reflector model to improve visibility at night
Durability Advantage
The wear resistance reaches 5500 times and the service life is long
Good waterproof performance, suitable for indoor and outdoor environments
Excellent weather resistance and easy to fade outdoors
Construction Convenience Advantage
Good rolling resistance, easy construction
Sticky, long-lasting, and easy to remove without residue
Can be torn directly by hand, high construction efficiency
Quality Assurance Advantage
SGS certification ensures reliable quality
Good color stability and strong batch consistency
Provide complete technical support
Economic and Technical Advantages
Service life up to 8 months (outdoor)
Fast construction and labor cost savings
Low overall cost
I. Substrate Preparation Process
Material ratio: Precise formulation of PVC resin and additives
Rolling forming: Formed using a four-roll press
Cooling and setting: Precise temperature control of cooling roller group
II. Coating Printing Process
Undercoating: micro-embossed coating process
Pattern printing: high precision gravure printing
Surface treatment: protective film coating process
3. Solidify the Cutting Process
Curing and hardening: multi-stage temperature zone control
Cut and roll: automatic cutting and packaging
Quality control: full-process quality monitoring
| Standard length | 30m/50m/66m |
| Inner diameter of coil | 76mm |
| Packaging specification | 20 rolls/box |
| technical parameter | |
| Substrate thickness | 0.14mm ± 0.02mm |
| Total thickness | 0.17mm ± 0.03mm |
| Initial adhesion | steel balls of size ≥15 |
| Adhesion | >30 hours |
Industrial Circle
Device Area Identifier
Tool storage area division
Non-hazardous area warning
Storage
Warehouse Area Division
Pass area label
Logistics channel instructions
communal facilities
Indicator channel ID
Service Area Division
Information prompt area
Business
Queue area label
Service window guide
Specific area indicator
Other Apps
Exhibition Area Division
Event venue guide
Temporary Sign
Q1: Will there be any glue marks after removal?
A: The adhesive-free solution leaves virtually no residue upon removal, preserving most floor surfaces without damage.
Q2: How long is the outdoor service life?
A: It can be used for 8 months in normal outdoor environment. It has a uv-resistant formula and good durability.
Q3: Will it become brittle in low temperature?
A: It can be used normally in a low temperature environment of-20℃, maintaining good flexibility and adhesion.
