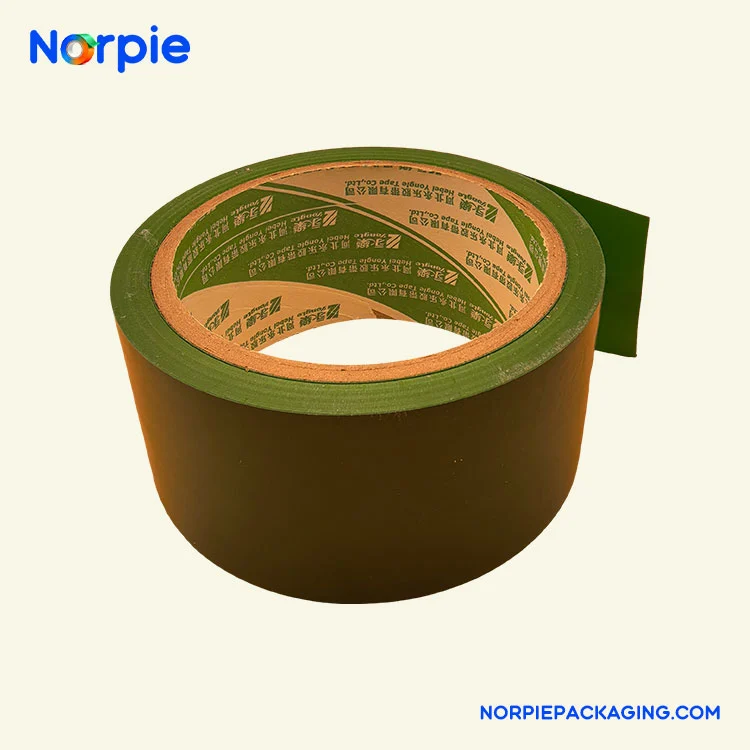

This Pure Green Warning Tape is specifically designed for safety zone signage, emergency passage guidance, and access control zone demarcation. We now offer free sample testing services to global clients, with online inquiry and bulk purchasing options available. Certified by SGS and compliant with RoHS environmental standards, we provide technical support and customized solutions.
| Substrate specifications | |
| material quality | PVC |
| Thickness | 0.13mm ± 0.02mm |
| Color | Pure green |
| Width | 48mm/72mm/96mm (customizable) |
| physical property | |
| Tensile strength | ≥50 N/cm |
| Extension rate | ≤170% |
| Adhesion | ≥12 N/25mm |
| Unwind force | 3-8 N/25mm |
| environmental performance | |
| Operating temperature | -15℃ to 60℃ |
| Weather resistance | up to 8 months for outdoor use |
| Security features | |
| Environmental certification | Passes RoHS testing |
Safety Guide Advantages
Pure green design, international safety color, clear indication
Soft colors are suitable for all types of safety zone signs
Optional reflector model to improve visibility at night
Environmental Performance Advantages
Made with eco-friendly materials and RoHS certified
Low odor, suitable for indoor environments
The production process complies with environmental standards
Convenience
Good rolling resistance, easy construction
Sticky and long-lasting, easy to remove with no residue
Can be torn by hand directly and is easy to use
Quality Assurance Advantage
SGS certification ensures reliable quality
Good color stability and strong batch consistency
Provide complete technical support
Economic and Practical Advantages
Service life up to 8 months, high-cost performance
Fast construction and labor cost savings
Low overall cost
1. Substrate Preparation Process
Material ratio: Precise blending of eco-friendly PVC with additives
Rolling forming: precision rolling controls thickness
Corona treatment: improve surface adhesion
2. Coating and Coloring Process
Undercoating: micro-embossed coating technology
Coloration: Imported green masterbatch ensures uniform color
Film protection: eco-friendly film coating process
3. Solidify the Cutting Process
Curing and hardening: precise temperature zoning control
Cut and roll: automatic cutting and packaging
Quality control: whole-process quality control
| size of product | |
| Standard length | 25m/45m/60m |
| Inner diameter of coil | 76mm |
| Packaging specification | 24 rolls/box |
| technical parameter | |
| Substrate thickness | 0.13mm ± 0.02mm |
| Total thickness | 0.16mm ± 0.03mm |
| Initial adhesion | steel balls of size ≥14 |
| Adhesion | >30 hours |
Safety Passage Sign
Emergency evacuation route
Safety Exit Guide
Shelter route directions
Production Area Division
Safe Work Area
Permit area
Device Safety Zone
Public Facilities
emergency shelter
Secure Collection Area
Public Safety Guidelines
Medical aid station
Emergency exit sign
Medical Area Division
Ambulance access
Other Scenarios
Fire escape signage
Emergency exit
Safety facility area
Q1: What is the main use of pure green warning tape?
A: Mainly used in safety passages, emergency evacuation routes, safety areas and other places where safety instructions need to be clearly defined.
Q2: Outdoor service life?
A: It can be used for 8 months in normal outdoor environment. It is recommended to check and replace it regularly.
Q3: Is it suitable for indoor use?
A: It is especially suitable for indoor use, environmentally friendly, low odor, safe and reliable.
