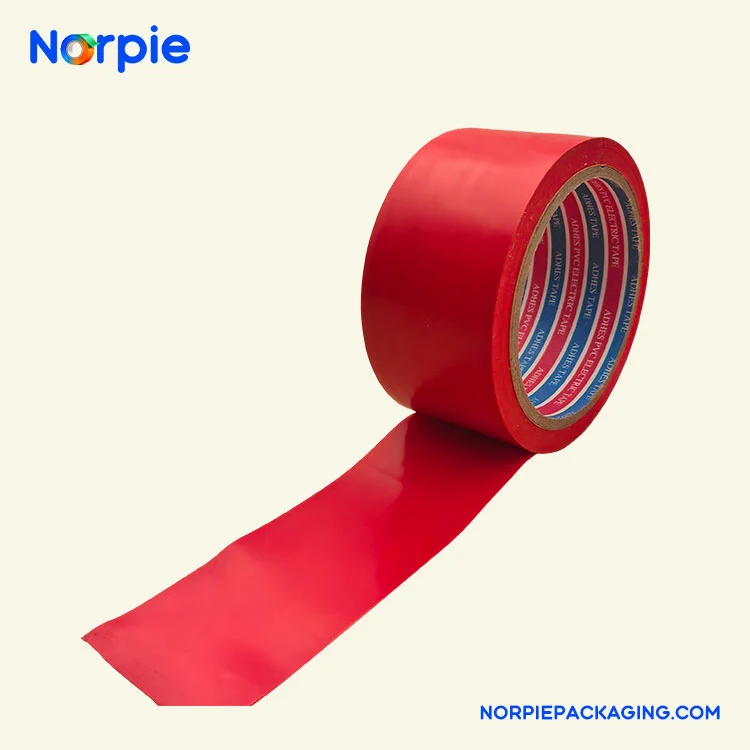

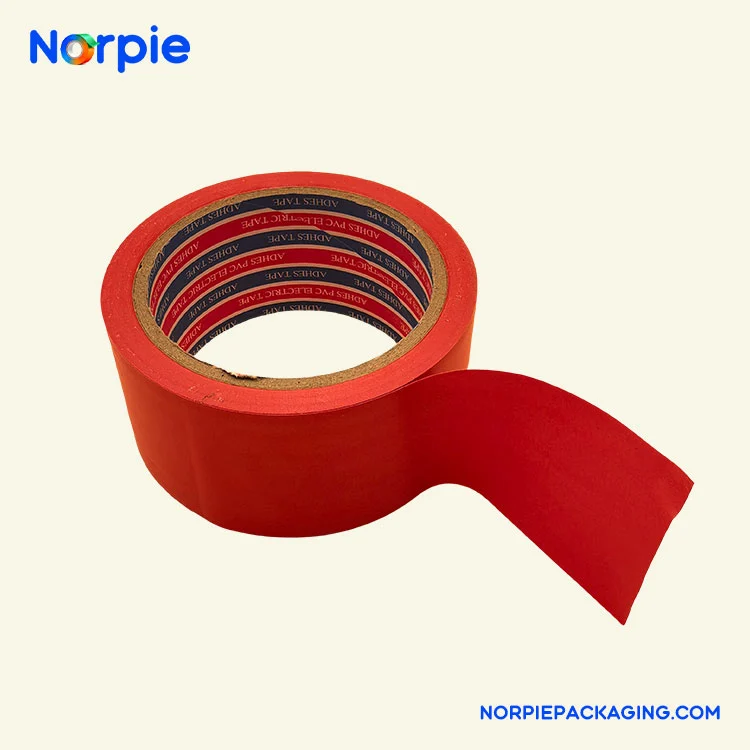

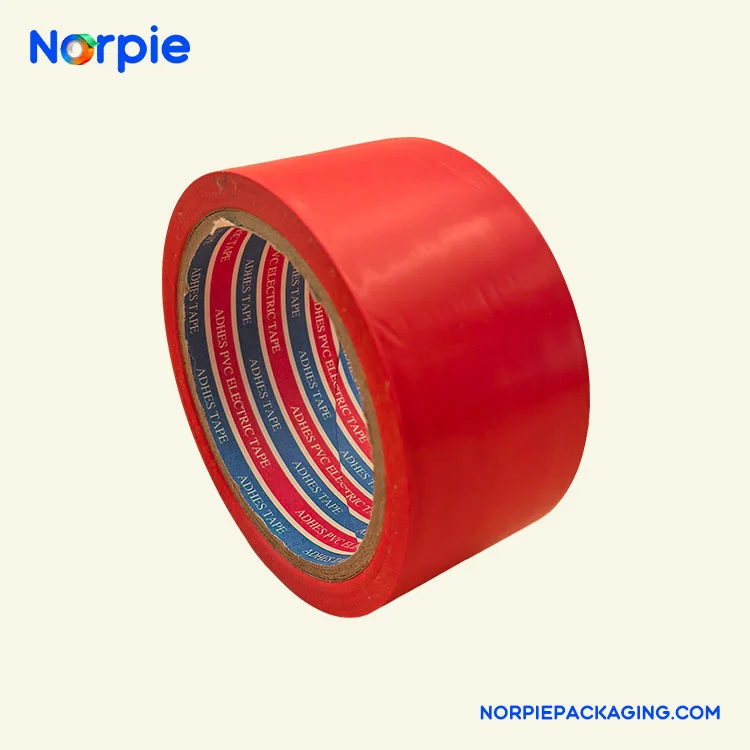

The pure red warning tape is specifically designed for high-risk area warnings, fire safety signage, and restricted zone demarcation. We now offer free sample testing services to global clients. Online inquiries and bulk purchases are supported with guaranteed delivery within agreed timelines. Certified by SGS and compliant with RoHS standards, we provide professional technical support and customized solutions.
| Substrate specifications | |
| material quality | PVC |
| Thickness | 0.15mm ± 0.02mm |
| Color | Pure Red |
| Width | 48mm/72mm/96mm (customizable) |
| physical property | |
| Tensile strength | ≥60 N/cm |
| Extension rate | ≤150% |
| Adhesion | ≥18 N/25mm |
| Unwind force | 5-12 N/25mm |
| environmental performance | |
| Operating temperature | -25℃ to 70℃ |
| Weather resistance | up to 12 months for outdoor use |
| Security features | |
| Environmental certification | RoHS and REACH compliance |
1. Substrate Preparation Process
Material ratio: Precise proportion of PVC resin and reinforcing agent
Rolling forming: precision shaping through a five-roll press
Corona treatment: improves surface adhesion
2. Coating Printing Process
Undercoating: slit coating technology is used
Color processing: imported color masterbatch to ensure uniform color
Film protection: double-sided protective film process
3. Solidify the Cutting Process
Drying and curing: 100m oven, eight-stage temperature control
Cutting and winding: CNC cutting with precision ±0.1mm
Quality inspection: automatic vision inspection system
Warning Advantages
Pure red design, strong visual impact, significant warning effect
Complies with the international standard for hazard warning colors and is highly recognizable
Durability Advantage
The wear resistance reaches 8000 times and the service life is long
Excellent weather resistance, adapt to all kinds of harsh environment
Strong anti-ultraviolet performance, long-term use does not fade
Construction Performance Advantages
The unfolding force is optimized for easy construction
Strong initial adhesion and secure bonding
The back-tearing process allows direct manual tearing.
Quality Assurance Advantage
Multi-certification including SGS and UL
Provide complete technical support services
Economic Performance Advantages
Service life up to 12 months, long replacement cycle
High construction efficiency and low comprehensive use cost
The protection effect is effective and avoids safety accidents
| Standard length | 33m/50m/66m |
| Inner diameter of coil | 76mm |
| Packaging specification | 20 rolls/box |
| technical parameter | |
| Substrate thickness | 0.15mm ± 0.02mm |
| Total thickness | 0.18mm ± 0.03mm |
| Initial adhesion | steel balls of size ≥18 |
| Adhesion | >48 hours |
High-risk Industrial Areas
High-voltage equipment area warning
Hazardous chemical area isolation
High-temperature equipment area identification
Fire Safety
Fire protection facility identification and positioning
Fire escape ban sign
Emergency equipment area division
Construction Site
High-altitude work area warning
Deep foundation pit hazard zone marking
Heavy machinery operation area
Transportation
Airport hazard zone sign
Port handling area warning
Railway operation area division
Q1: Can pure red warning tape be reused?
A: As a disposable product, ensure the reliability of the warning effect.
Q2: Will there be residual glue after removal?
A: Special adhesive formula, no residue after removal, does not damage the substrate.
Q3: What does customized service include?
A: Support width and length customization
