The Silver Gray Single Sided Duct Tape now offers free sample testing services to global customers, with online inquiry and bulk purchasing options. The products pass SGS testing and meet RoHS environmental standards. We also provide technical support and customized services.
| Substrate specifications | |
| Material | High-strength PE woven fabric |
| Thickness | 0.26mm ± 0.02mm |
| Weight | 135g/m² ± 5% |
| Color | Silver gray |
| Adhesive properties | |
| Type | High performance acrylic pressure sensitive adhesive |
| Initial tack | steel balls 17-21 |
| Adhesion | ≥75 hours |
| 180° peel strength | ≥23 N/25mm |
| physical property | |
| Tensile strength | longitudinal ≥140 N/cm |
| Extension rate | ≤22% |
| Unwind force | 4-8 N/25mm |
| Tear strength | ≥110 N/cm |
| environmental performance | |
| Operating temperature | -25℃ to 80℃ |
Appearance Advantages
Silver-gray with a strong modern feel and a strong sense of technology
Harmonize with metal products in color
Stable color, lasting like new
Improve the overall quality of the product
Performance Advantages
Excellent weather resistance, suitable for outdoor environment
High bonding strength and good reliability
Waterproof and moisture-proof, wide range of use
Quality Advantage
High strength and durability of substrate
The coating is uniform and free of excess.
Application Benefits
Suitable for modern industrial scenarios
Perfectly matched with electronic products
Easy to build and efficient
Economic and practical, good value for money
1. Substrate Preparation Process
raw material preparation:
Ultra-high density PE pellets
Silver-Gray Masterbatch
antioxidant
Weaving process:
Precision Weaving
Double heat setting treatment and finishing:
Surface polishing
Split and Roll
quality inspection
2. Adhesive Preparation
Raw material system:
Acrylate copolymer
Special tackifying resin
Functional Additives
Synthesis process:
Solution polymerization process
Temperature control 88±2℃
Solid content 62±2%
3. Coating Process
Substrate pretreatment:
Corona treatment (5.2kW)
Preheat to 58°C
single spread:
Precision Coating Process
Coating thickness: 24±2g/m²
Coating speed 30-40m/min
Drying and curing:
Six-stage oven
Temperature: 70℃/90℃/110℃/100℃/80℃/60℃
Hot air circulation drying
4. Subsequent Treatment
Matured:
Mature at 50℃ for 36 hours
Humidity control 50±5%

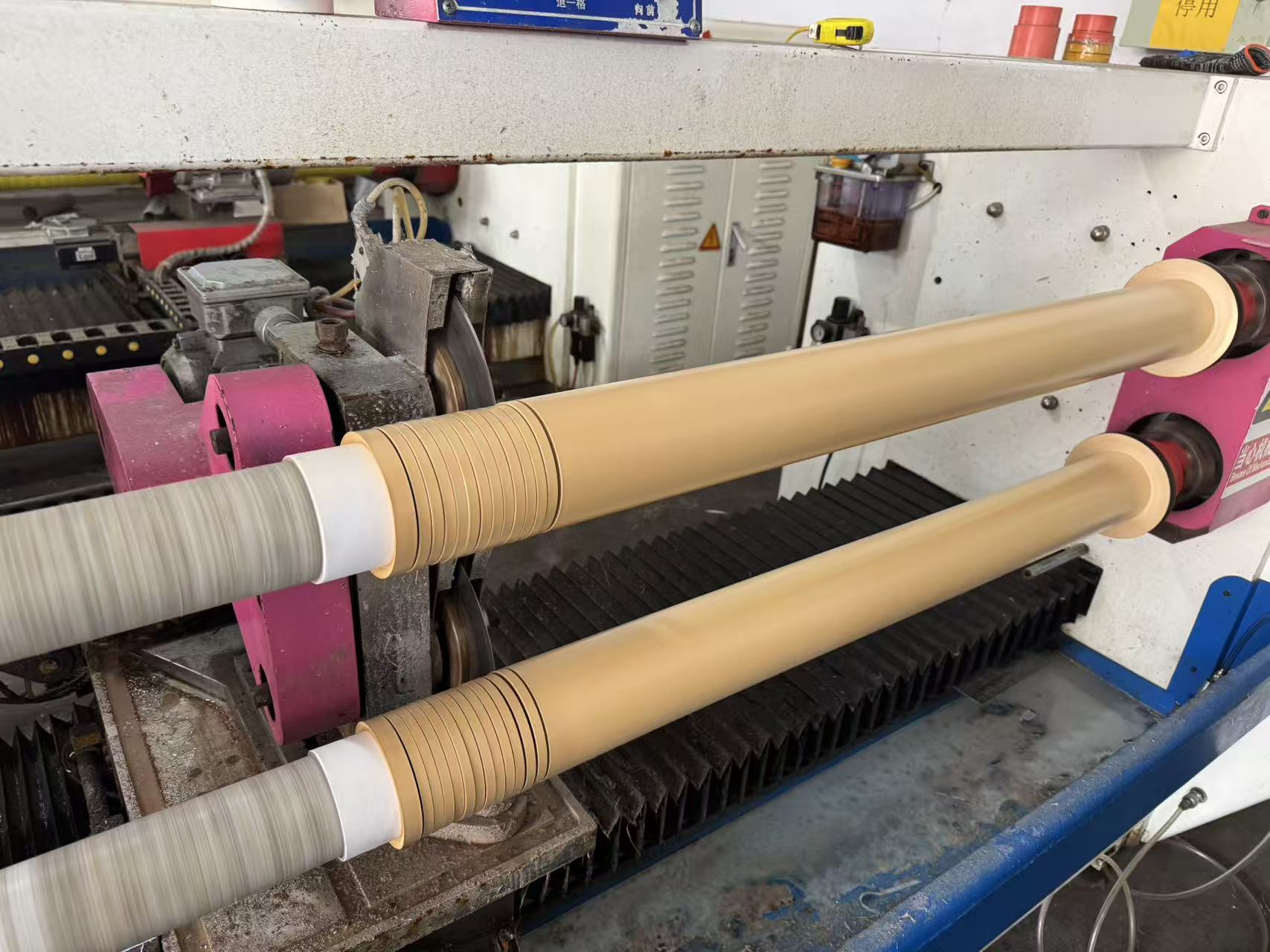

Cut and pack:
High-precision slitting system
Automatic visual inspection
Dust and moisture-proof packaging
| standard specifications | |
| Thickness | 0.26mm ± 0.02mm |
| Width | 24mm/36mm/48mm/60mm/72mm |
| Length | 50m per roll (standard) |
| Inner diameter of coil | 76mm |
| technical parameter | |
| Base weight | 135g/m² |
| Coating thickness | 0.055mm |
| Initial tack | steel balls 17-21 |
| Unwind force | 4-8 N/25mm |
| performance index | |
| Tensile strength | ≥140 N/cm |
| Adhesion | ≥75 hours |
| Temperature resistance | -25℃ to 80℃ |
| qualitative index | |
| Uniformity of thickness | ±0.015mm |
| Adhesion deviation | ±1.5N |
| Rolling resistance fluctuation | ±1.0N |
1. Building decoration field (modern style adaptation)
Metal/Modern Style Color Division: In metal ceilings, silver walls, and modern minimalist interiors, this technique applies precise silver-gray color gradation through spraying or painting. The silver-gray precisely defines construction boundaries while blending seamlessly with metallic elements, elevating the overall aesthetic. The process leaves no residue upon removal, eliminating the need for additional treatment to conceal marks.
Temporary Fixing and Protection: When installing metal frames and silver decorative panels, this method provides temporary positioning and fixation, replacing traditional nails to prevent material damage. It also protects completed metal doors and windows, as well as stainless steel countertops, from scratches or cement slurry during construction.
2. Daily life and scene application (the combination of texture and utility)
Modern Home Renovation: Perfect for restoring metal furniture and silver appliances with surface scratches, the silver-gray finish discreetly conceals damage. Silver Gray Single Sided Duct Tape also enhances storage boxes and wraps around furniture legs, adding industrial charm to your space while complementing contemporary minimalist decor.
Handmade DIY and event setup: Ideal for assembling metal sheets and silver cardstock with its strong adhesive, perfect for creating silver backdrop panels and securing electronic displays in modern exhibitions and tech-themed parties, enhancing the scene's technological sophistication and upscale appeal.
3. Extended applications in special scenarios
Outdoor/emergency scenarios: Silver-gray material is highly visible in outdoor environments and resistant to weathering, ideal for repairing silver tents and securing sky curtains during camping. In emergencies, it can mark hazardous areas (such as ground protrusions or pipe leaks) to alert people to avoid them.
Stage and film props: For stage performances and film productions, these materials create metallic textures (such as simulated mechanical parts and silver decorations) and produce silver-gray industrial or sci-fi scenes quickly. They also help organize stage lighting cables. The silver-gray color maintains good concealment in dark environments without compromising visual aesthetics.
Q1: Will outdoor use cause fading or loss of adhesion?
A: Weather-resistant from-20°C to 60°C, rainproof and windproof. It resists fading and peeling during short-term outdoor use, but for prolonged sun exposure, we recommend choosing a thicker weather-resistant model.
Q2: Will scratches on decorative metal furniture cause color mismatch?
A: Silver-gray complements most matte or brushed metal finishes. Test the color in a hidden spot of the furniture before application to avoid color discrepancies.
Q3: Can Silver Gray Single Sided Duct Tape be used to repair heavy metal parts?
A: Suitable for securing small to medium-sized metal components (e.g., small appliance parts). For items exceeding 5kg, we recommend using thicker models or bundling straps.
