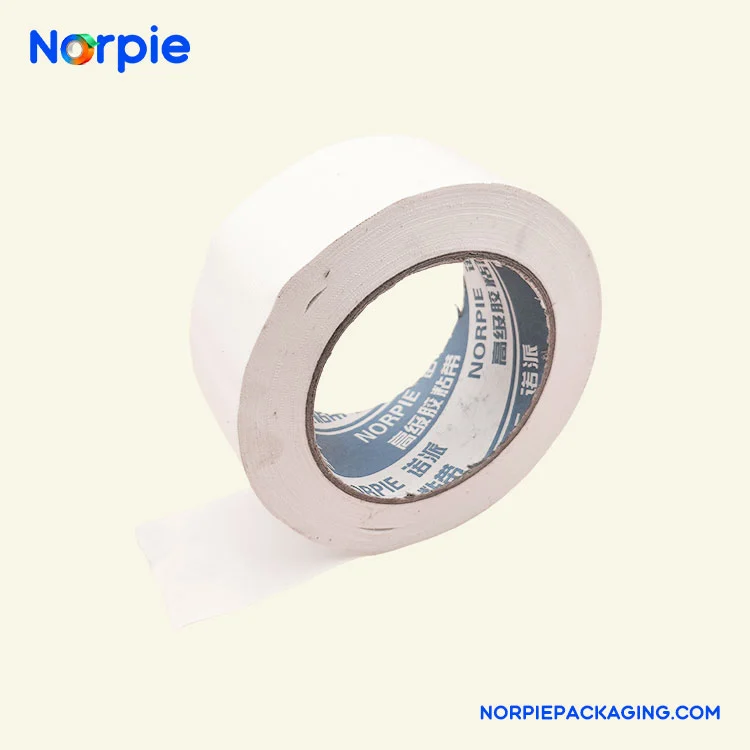

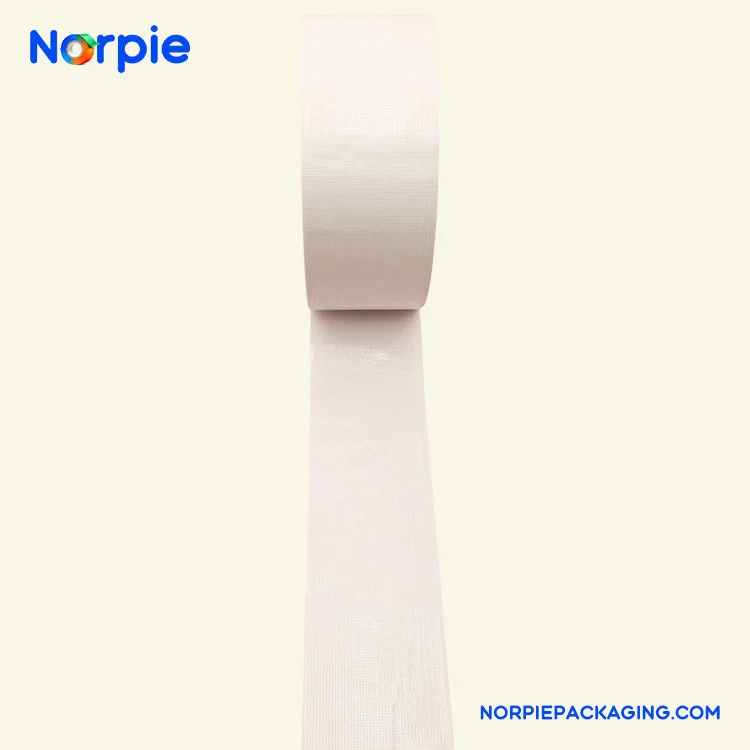

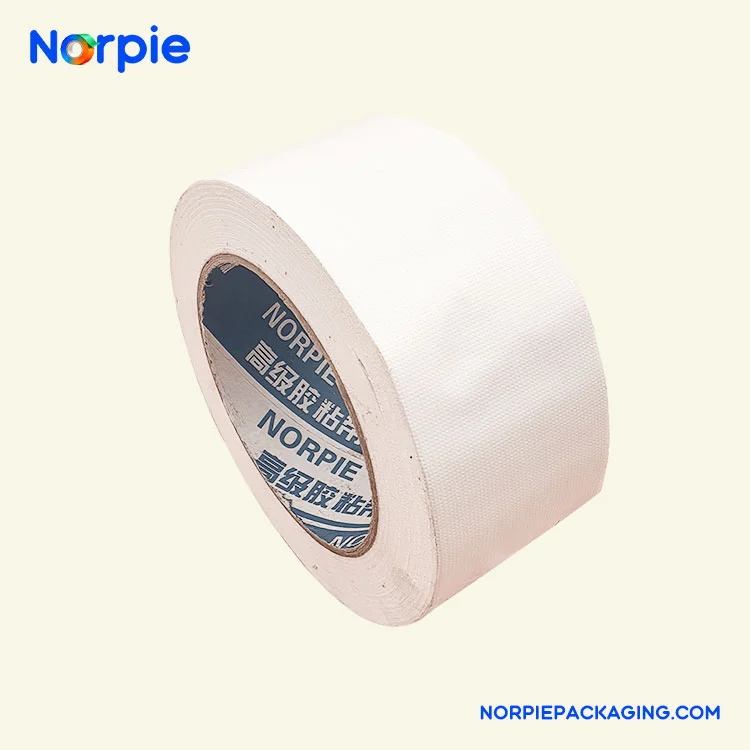

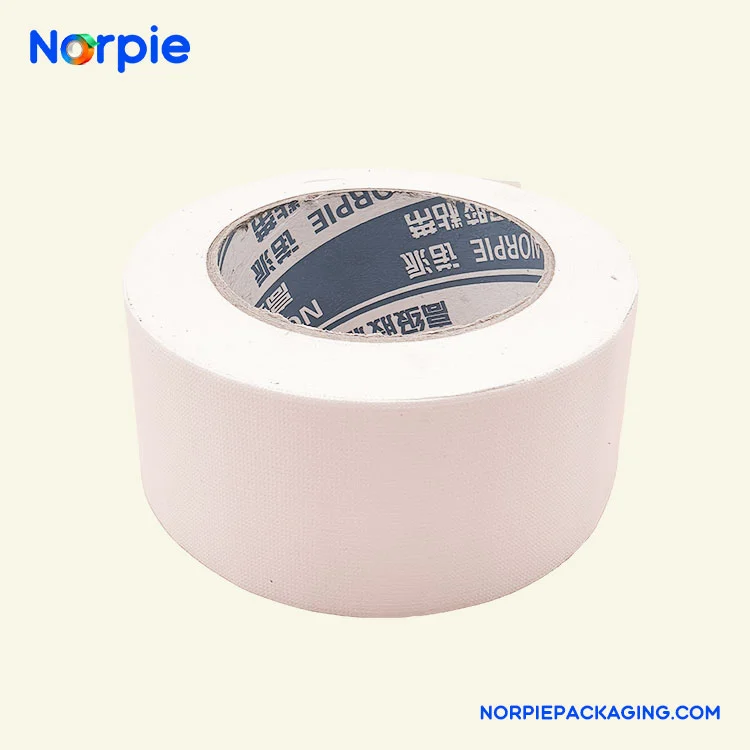

The White Single Sided Duct Tape now offers free sample testing services to global customers, with online inquiry and bulk purchasing options. Certified by SGS and compliant with RoHS environmental standards, we provide technical support and customized solutions.
| Substrate specifications | |
| Material | High-strength PE woven fabric |
| Thickness | 0.25mm ± 0.02mm |
| Weight | 120g/m² ± 5% |
| Color | Pure white |
| Adhesive properties | |
| Type | Modified acrylic pressure sensitive adhesive |
| Initial tack | 15-19 steel balls |
| Adhesion | ≥72 hours |
| 180° peel strength | ≥20 N/25mm |
| physical property | |
| Tensile strength | longitudinal ≥120 N/cm |
| Extension rate | ≤25% |
| Unwind force | 3-7 N/25mm |
| Tear strength | ≥100 N/cm |
| environmental performance | |
| Operating temperature | -30℃ to 70℃ |
| Chemical resistance | acid and alkali resistance, corrosion resistance |
Advantages of Substrate Properties
PE substrate waterproof and moisture-proof
High tensile strength and good durability
Excellent flexibility and adaptability to curved surfaces
Resistant to chemical corrosion, long service life
Adhesive Advantages
The initial stickiness is moderate and the positioning is accurate
Reliable adhesion and strong bonding
Weather resistance is stable
Good bonding effect for various materials
Convenience
Good unfolding force and easy operation
Easy to tear, high construction efficiency
Adapt to various construction environments
Stable Quality Advantage
Uniform thickness
Layer coating precision
Batch stability
1. Substrate Preparation Process
raw material preparation:
High-density PE pellets
White masterbatch
inhibitor
Weaving process:
Woven lines
Density control 20×18 roots/cm²
Heat setting
afterfinish:
Surface leveling
Split and Roll
quality inspection
2. Adhesive Preparation
Raw material system:
Acrylate copolymer
Viscosity-increasing resin
Functional Additives
Synthesis process:
emulsion polymerization
Temperature control 85±2℃
Solid content 58±2%
3. Coating process
Substrate pretreatment:
Corona treatment (5.5kW)
Preheat to 60°C
single spread:
Squeegee coating process
Coating weight 22±2g/m²
Coating speed 30-40m/min
Drying and curing:
Five-stage oven
Temperature: 70℃/90℃/110℃/90℃/70℃
Hot air circulation drying
4. Subsequent Treatment
Matured:
Mature at 50℃ for 24 hours
Humidity control 50±5%
Cut and pack:
High-precision slitting system
Automatic visual inspection
Dust-proof packaging
| standard specifications | |
| Thickness | 0.25mm ± 0.02mm |
| Width | 24mm/36mm/48mm/60mm/72mm |
| Length | 50m per roll (standard) |
| Inner diameter of coil | 76mm |
| technical parameter | |
| Base weight | 120g/m² |
| Coating thickness | 0.05mm |
| Initial tack | 15-19 steel balls |
| Unwind force | 3-7 N/25mm |
| performance index | |
| Tensile strength | ≥120 N/cm |
| Adhesion | ≥72 hours |
1. Decoration Field
Color separation and shielding of walls and floors, such as boundary protection when painting or wallpapering, to avoid paint pollution.
Temporary fixed decorative materials, such as baseboard, door and window sealing strip, and background wall decorative panel positioning and adhesion.
In stage and exhibition decoration, fixed posters, banners, balloons and other props are arranged to balance the load and easy cleaning.
2. Industrial Production
Temporary binding of mechanical equipment and fixing of pipelines, such as the arrangement and storage of wires and air pipes, to prevent entanglement.
Product packaging protection, such as carton sealing, metal/glass surface protection, to avoid wear during transportation.
3. Logistics and Warehousing
Heavy cargo and large packages are reinforced and packaged with strong tensile strength and suitable for rough box surface.
The goods classification labels and area division labels on warehouse shelves can be written directly or pasted with labels.
The pallet goods are wrapped and fixed to prevent scattering during handling and adapt to high and low temperature storage environment.
4. Home and Civil Areas
Home item repairs, such as temporary fixation of sofas and curtains, and anti-slip adhesive application on carpet edges.
Organize and store wires and network cables, and fix White Single Sided Duct Tape on the wall or floor to keep the environment clean.
When camping outdoors, secure the tent, canopy, and moisture-proof mat to rough surfaces like grass and rocks with durable, stretch-resistant materials.
Automotive and transportation
Temporary mounting of interior components, such as floor mats, seat covers, and trim pieces.
The temporary traffic signs are fixed, such as the warning slogans and barriers on the construction section, which are wind and weather resistant.
Q1: What are the characteristics of PE substrate?
A: Waterproof, moisture-proof, corrosion-resistant, flexible and strong.
Q2: How is the bonding effect?
A: The initial adhesion force of 15-19 grade steel balls is maintained for ≥72 hours.
Q3: Which environments are applicable?
A: Outdoor, wet, corrosive and other harsh environment.
