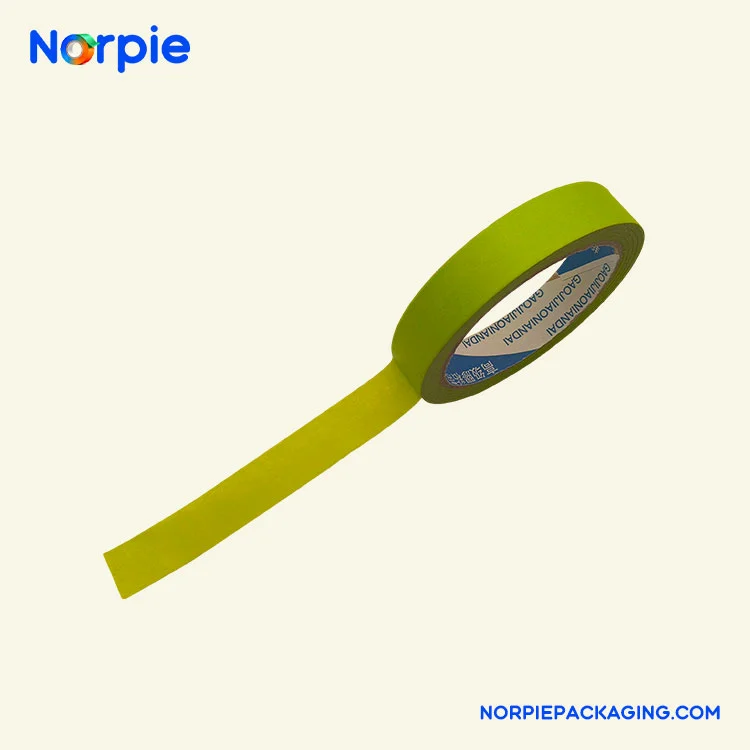

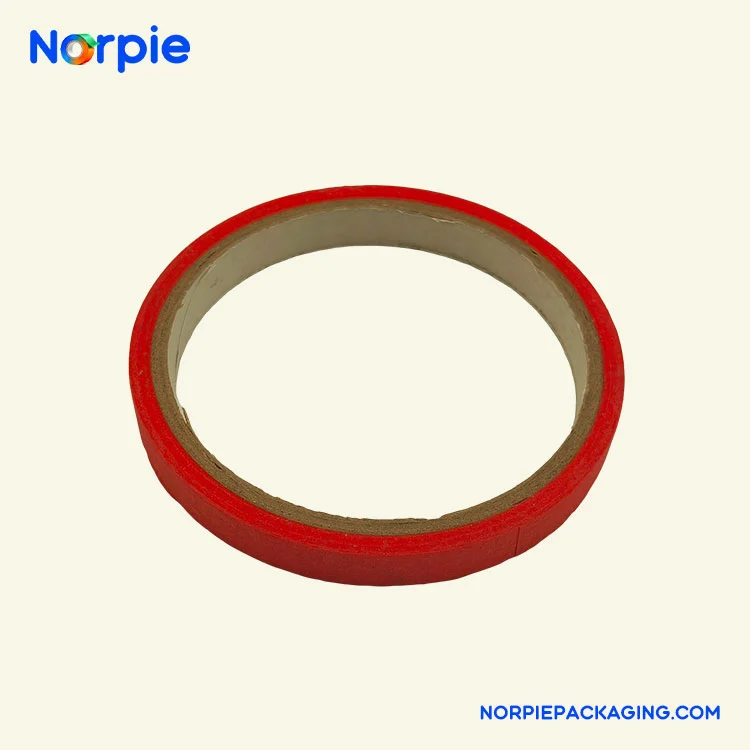

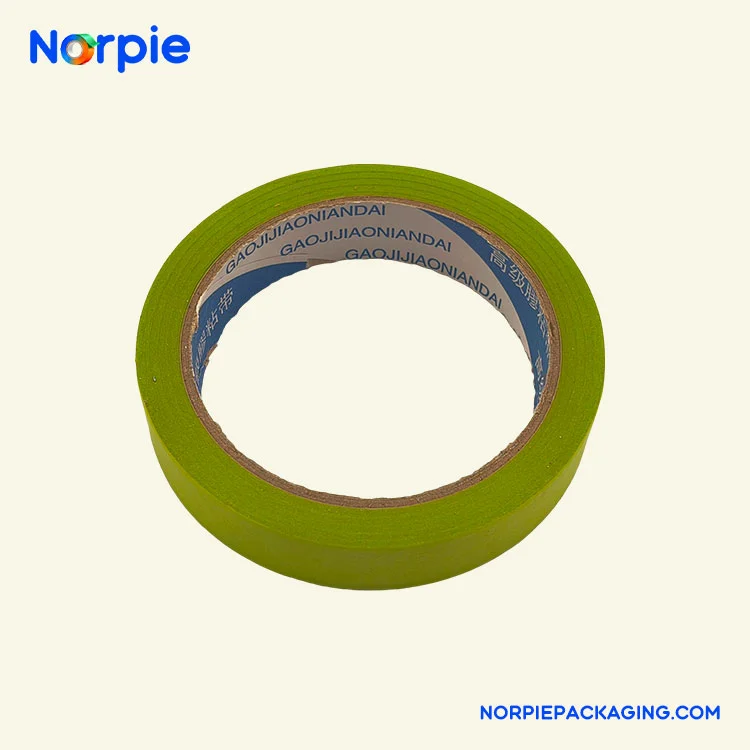

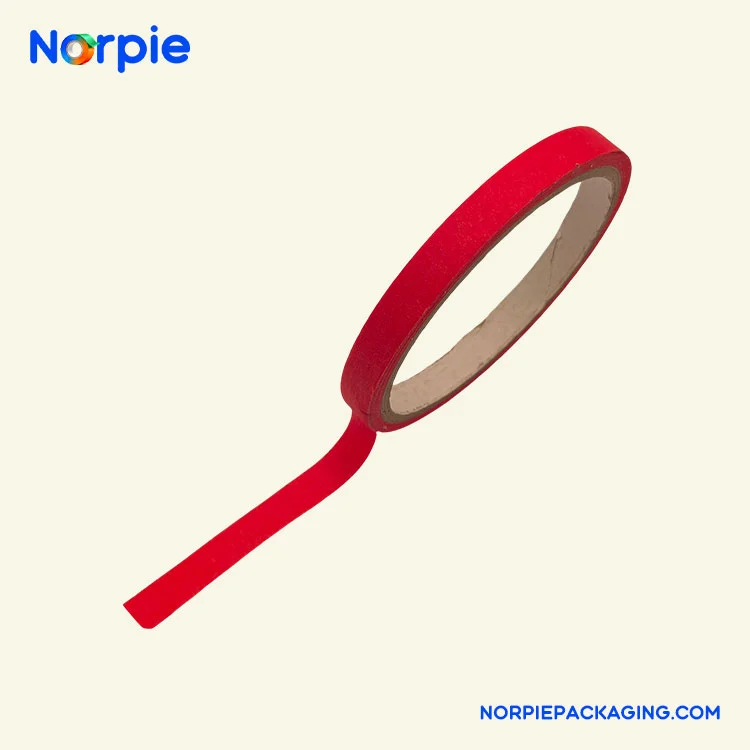

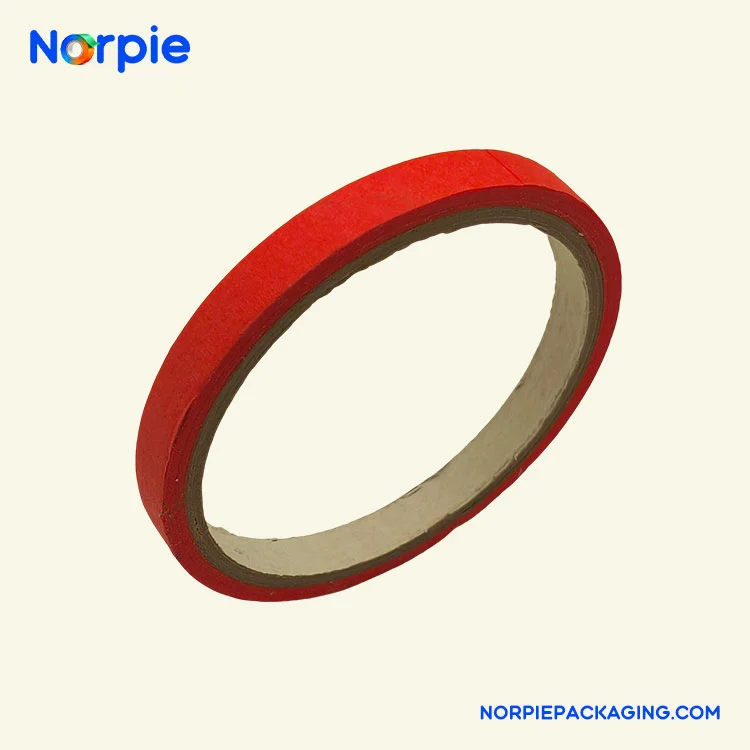

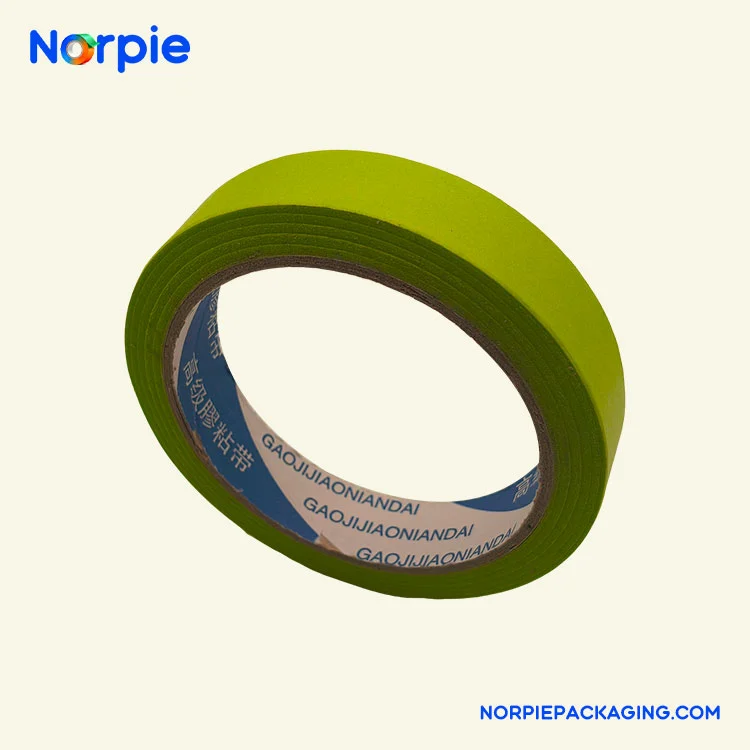

This Exterior Wall Textured Paper Tape is specifically designed for exterior wall coatings and outdoor decoration projects. We now offer free sample testing services to global clients. Online inquiries and bulk purchases are supported, with a monthly production capacity of 1 million square meters. Standard orders are delivered within 7 working days. The product has passed SGS testing and meets RoHS environmental standards. We provide professional technical support and customized services.
| Substrate specifications | |
| Material | high strength weather resistant corrugated paper |
| Quantitative | 90g/m² ± 5% |
| Thickness | 0.20mm ± 0.02mm |
| Color | Natural (UV resistant) |
| Adhesive properties | |
| Type | Weather resistant acrylic pressure sensitive glue |
| Initial tack | 14-18 steel balls |
| Adhesion | ≥48 hours (standard conditions) |
| 180° peel force | 20-30 N/25mm |
| Weather resistance | |
| Ultraviolet resistant | Performance retention rate>90% after 500 hours of testing |
| Temperature range | -20℃ to 80℃ |
| Moisture resistance | maintains viscosity in 95%RH environment |
| Anti-aging | stable performance for 30 days outdoors |
| physical property | |
| Tensile strength | ≥6.0 kN/m in longitudinal direction |
| Tear strength | ≥500mN |
| Breathability | ≥200s/100ml |
| Water absorption | ≤2.0% |
Weather Resistance Advantage
Special weather-resistant formula, anti-UV aging
Suitable for wide temperature range and adapt to seasonal temperature changes
Moisture and rainproof, stable performance in rainy season
Construction Performance Advantages
Strong initial adhesion and accurate positioning for outdoor construction
Excellent adhesion and long-term adhesion without edge lifting
Easy to tear and high construction efficiency
Protection Advantages
Remove thoroughly to protect the integrity of exterior paint
The substrate has high strength and is not easy to break under wind vibration
Special coating layer to prevent paint penetration
Economic and Practical Advantages
Reduce rework and improve construction quality
Low overall cost
Wide range of applications and easy procurement
1. Substrate Fabrication Process
Pulp ingredients:
Imported coniferous wood pulp 70%
Broadleaf wood pulp 30%
Add 3-5% weathering agent
Paper forming:
Quad Mesh Forming Device
Surface Gluing
Hot Air Dryer
afterfinish:
Super Press
Water Balance Control
Split and Re-roll
2. Adhesive Preparation
Raw material system:
Acrylate copolymer 80-85%
Weathering additive 10-15%
Ultraviolet absorber 3-5%
Polymerization process:
Emulsion polymerization
Temperature control 85±2℃
Solid content 55±2%
3. Coating Processing
Substrate pretreatment:
Plasma surface treatment
Preheat to 50°C
Precision coating:
Use micro-embossed coating
Coating thickness: 25±2g/m²
Production line speed 25-35m/min
Drying and curing:
Five-stage oven
Temperature: 60℃/85℃/100℃/85℃/60℃
Wind speed zone control
4. Subsequent Treatment
Mature:
Mature at 45℃ for 36h
Humidity control 60±5%
Cut and pack:
High-precision slitting system
Automatic defect detection
damp-proof packing
| standard specifications | |
| Thickness | 0.20mm ± 0.02mm |
| Width | 24mm/36mm/48mm/60mm/72mm |
| Length | 50m per roll (standard) |
| Pipe inner diameter | 76mm |
| technical parameter | |
| Substrate quantity | 90g/m² |
| Coating thickness | 0.05mm |
| Initial tack | 14-18 steel balls |
| Unwind force | 5-10 N/25mm |
| performance index | |
| Tensile strength | ≥6.0 kN/m |
| Extension rate | ≤12% |
| Ultraviolet resistance | 500 hours |
| Maximum duration | 30 days |
Building Exterior Wall Painting
1. Exterior wall construction of new house
External wall paint color division
Decorative line positioning protection
Define door and window openings
2. Exterior wall renovation project
Color separation for old wall
Partial boundary repair
Special Building Coating
1. Industrial buildings
Wall painting color separation
Warehouse facade section marking
2. Public buildings
School exterior wall decoration panel
Hospital building color zoning
Color design for sports venues
Building Decoration Engineering
1. Stone curtain wall
Stone joint protection
Dry hanging stone boundary definition
Stone care construction protection
2. Decorative elements
Decorative trim paint protection
Relief patterns are accurately constructed
Special shape boundary positioning
Q1: What are the applicable exterior wall materials?
A: Suitable for common exterior wall materials such as coatings, stone paint, stone, and metal sheets.
Q2: Does rain affect the use?
A: Moisture-resistant, suitable for light rain, but avoid heavy rain during construction.
Q3: Will removal damage the coating?
A: Special adhesive formula that removes without damaging intact coating.
