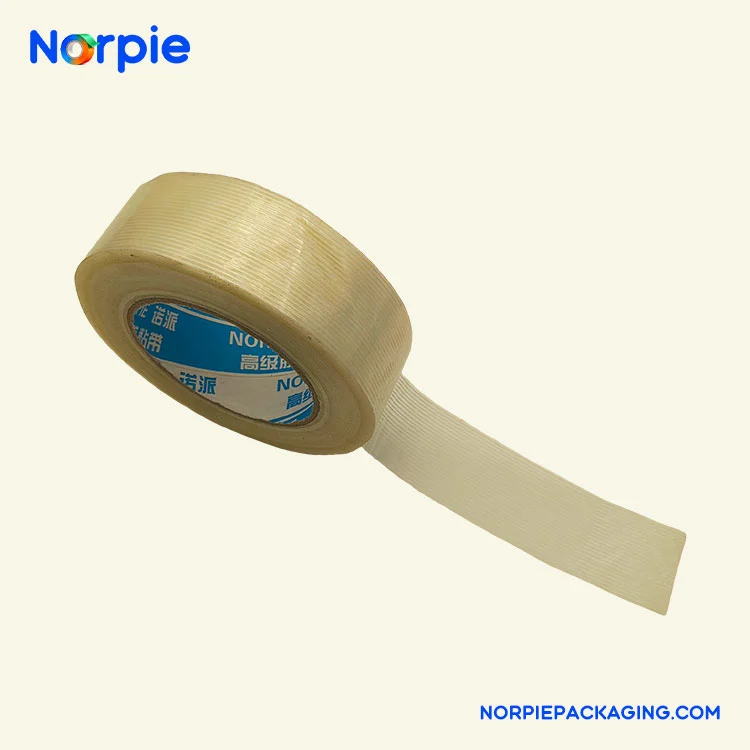

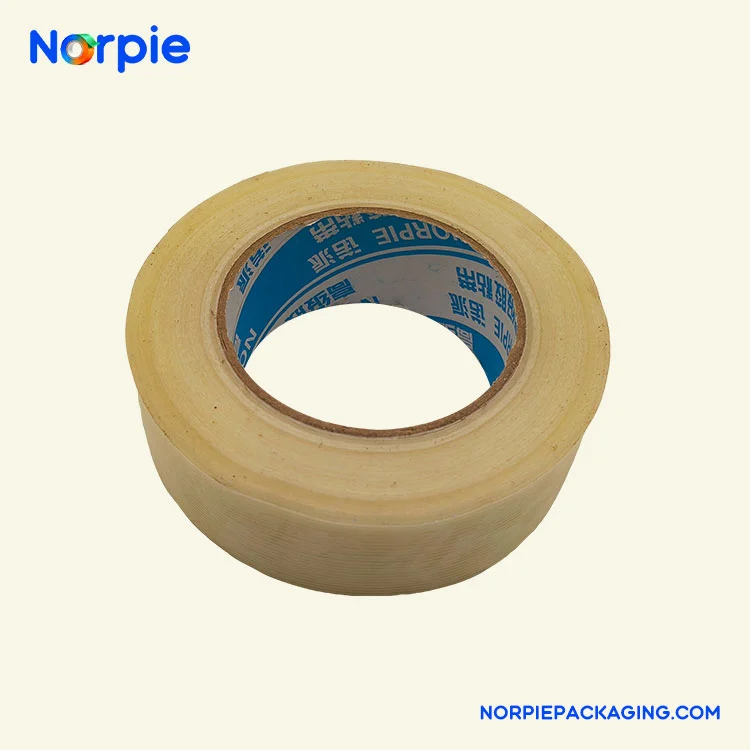

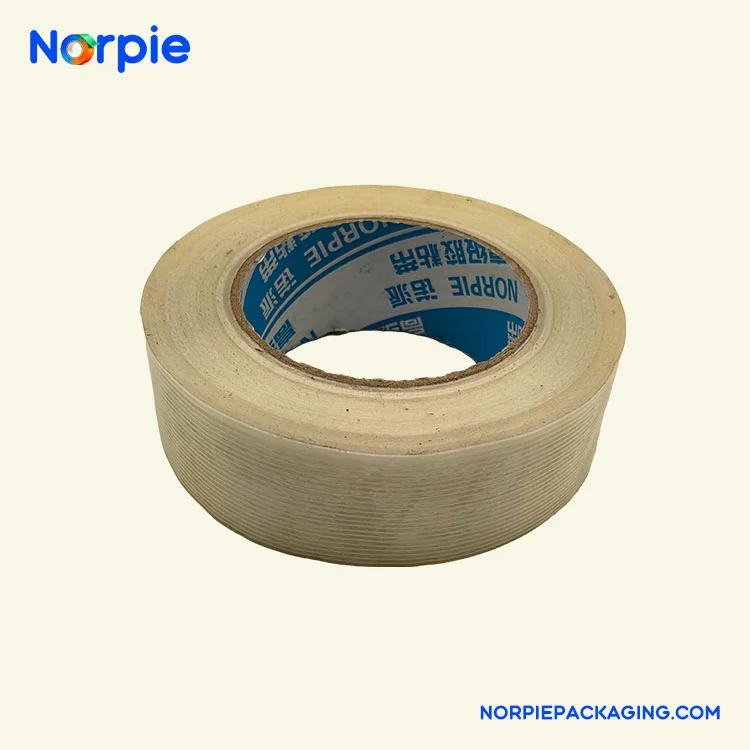

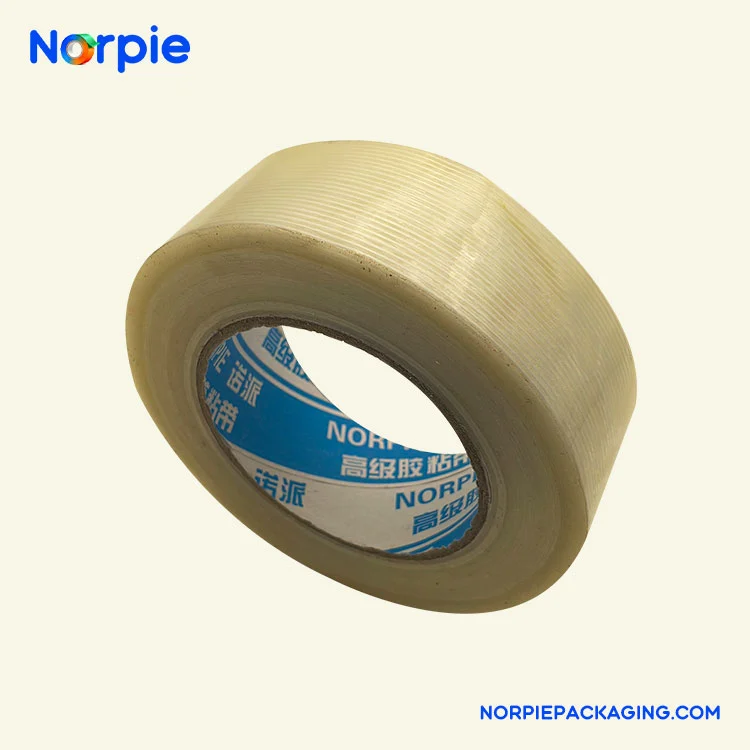

This striped fiber tape is engineered for heavy-duty applications including cargo securing, pipeline reinforcement, and equipment protection. We now offer free sample requests to global clients. Our online inquiry system and procurement request submission feature are fully supported, with a monthly production capacity of 450,000 square meters. Deliveries will be scheduled according to agreed timelines.
1. Substrate Structure Characteristics
Polyester fiber substrate with cross woven warp and weft
The surface features a special embossed stripe design to enhance longitudinal tensile strength
Substrate thickness: 0.15mm ± 0.02mm
Weight: 210 g/m² ± 5%
2. Mechanical Properties
Tensile strength: ≥180 N/cm
Extension rate: ≤3%
180° peel strength (steel plate): 28 N/25mm ± 2N
Adhesion:>96 hours (1kg load, 23℃)
3. Adhesive Properties
Modified rubber adhesive is used for strong initial adhesion
The bonding strength of PVC, steel, and concrete shall be ≥20 N/25mm
The unwinding force should be controlled within the range of 8-15 N/25mm
4. Environmental Adaptability
Temperature range: -40℃ to 120℃
Damp heat resistance: 240 hours at 85℃/85%RH, with strength retention rate>90%
Resistance to ultraviolet aging: no substrate brittleness after 1000 hours of testing
5. Processing and Application Features
Supports on-site tearing without special tools
The substrate is flexible with a minimum bending radius of 3mm
The adhesive is uniform and there is no leakage
1. Structural Strength Advantage
The Polyester fiber substrate has a tensile strength of 180N/cm, 2.3 times that of ordinary cloth-based tape.
The crosswise and longitudinal weaving structure ensures uniform force distribution in all directions, with tear resistance improved by 60%.
The surface embossing design increases the effective bonding area by 30% and improves the overall bonding strength
2. Durability Advantage
Suitable for a wide temperature range of-40℃ to 120℃, meeting the requirements of extreme environments
After 1000 hours of ultraviolet aging test, it still maintains more than 90% of mechanical properties
Excellent corrosion resistance in humid environment after 72-hour salt spray test
3. Construction Efficiency Advantage
Support manual tearing, no special cutting tools required for on-site construction
The initial adhesive strength is 15N/25mm, enabling quick positioning and adhesion.
The optimized design ensures smooth unwinding without residual adhesive.
4. Economic Benefits
The service life is 8 years, 2.5 times that of ordinary cloth tape
Standard 50-meter single roll packaging reduces replacement frequency
Can replace the traditional mechanical fixing method, saving 40% of the installation cost
I. Substrate Pretreatment Process
Polyester fiber cloth inspection: Test the base material's tensile strength (≥180N/cm in longitudinal direction) and weave density
Heat treatment: The surface slurry is degreased in a high-temperature furnace at 280℃
Impermeation treatment: The bonding strength between fibers and adhesives is enhanced through silane coupling agent immersion tank
2. Adhesive Preparation System
Raw material preparation: Pre-mix rubber-based polymer and tackifier resin in a 5:2 ratio.
Internal mixing process: 45 minutes of mixing in an internal mixer at 110℃
Coating viscosity control: Use a Brookfield viscometer to ensure the adhesive solution viscosity is 8500±500cps
3. Single-sided Coating and Composite Process
Precision Coating: A reverse-roll coating head applies coating to one side of the substrate at 15-25m/min
Backside lamination: The coated surface is laminated with a PET release film (0.05mm thick) under a composite pressure of 0.8-1.0MPa.
Drying system: Five-stage drying oven with temperature gradient set at 70℃/90℃/110℃/100℃/80℃
4. Embossing Process
Pressing treatment: The backing surface is formed with deepening stripes of 0.03-0.05mm depth through the use of a embossing roller.
Heat curing: 2-minute heat curing at 100℃
Cooling and setting: The tape is set using a three-roll cooling system at 20±5℃
V. Post-Processing Flow
Cutting process: Utilizes a high-precision circular blade cutter with a precision of ±0.15mm
Reel control: Constant tension rewinding system (Tension range 2-5N)
Packaging environment: Packaging is completed in a clean environment with temperature 23±2℃ and humidity 50±5%
VI. Quality Control System
Each striped fiber tape roll undergoes initial adhesion (using No.12 steel balls) and adhesion retention (over 72 hours) testing.
Perform batch sampling tests for backing peel strength (8-12N/25mm)
| Substrate specifications | |
| Material | Polyester fiber cloth in warp and weft direction |
| Substrate thickness | 0.13mm ± 0.02mm |
| Base weight | 125 g/m² ± 5% |
| Color | Transparent |
| Adhesive specifications | |
| Type | synthetic rubber pressure sensitive adhesive |
| Coating thickness | 0.13mm ± 0.02mm |
| Total thickness | 0.26mm ± 0.03mm (including substrate) |
| Solid content | ≥68% |
| Backplane specifications | |
| Release film | PET film, 0.05mm thick |
| Release force | 8-12 N/25mm |
| physical property | |
| Tensile strength | ≥180 N/cm in longitudinal direction and ≥160 N/cm in transverse direction |
| 180° peel strength (steel plate) | 25 N/25mm ± 2N |
| Adhesion | >72 hours (1kg load, 23℃/50%RH) |
| Initial adhesion | No.12 steel ball (inclined ball rolling method) |
| environmental performance | |
| Temperature range | -40℃ to 120℃ |
| Short-term heat resistance | 150℃ (no more than 15 minutes) |
| Heat and humidity resistance | 90% performance retention after 500 hours at 85℃/85%RH |
| Resistance to ultraviolet aging | no substrate brittleness after 800 hours of testing |
| size of product | |
| Standard width | 10mm/15mm/20mm/25mm/50mm |
| Custom width | 5mm to 1000mm |
| Roll length | Standard 50 meters per roll, customizable from 10 to 100 meters |
| Pipe diameter | 76mm (3-inch standard) |
| approval standards | |
| Environmental certification | SGS testing confirmed compliance with RoHS/REACH standards |
| Quality Management System | ISO 9001 certification |
| Storage and transportation | |
| Storage temperature | 15-30℃ |
| Humidity range | 40-60%RH |
| Shelf life | 24 months in original packaging |
| Transportation requirements | avoid sun and rain, prevent mechanical compression |
I. Industrial Manufacturing
Mechanical equipment manufacturing and maintenance
Heavy equipment nameplate is permanently attached to withstand equipment vibration and oil contamination
The protective layer of the machine tool guide rail is fixed to reduce metal friction loss
The insulation layer of the motor is reinforced to enhance the safety performance of the equipment
Protect the surface of production line equipment from scratches
Automobile manufacturing and maintenance
Engine compartment harness is fixed and resistant to high temperature and oil
Body panel seam sealing, dust and water resistant
Interior structural bonding replaces traditional mechanical fixation
Installation of in-vehicle electronic equipment, shock absorption
2. Building Decoration
Building curtain wall and external structure
Seal panel joints to accommodate thermal expansion and contraction
Tighten the joints of prefabricated components to improve air tightness
Steel structure corrosion protection layer fixed, prolong service life
Outdoor billboard installation, wind and earthquake resistant
Interior decoration and maintenance
Stone joint reinforcement to prevent cracking
Metal trim is fixed and easy to install
Waterproof sealing for bathroom fixtures, mold and moisture resistant
Ceiling joint treatment, beautiful and strong
III. Electronic and Electrical Fields
Manufacturing of electronic equipment
The chassis electromagnetic shielding is fixed to ensure shielding effectiveness.
Reinforcement bonding on circuit board to enhance structural strength
Install the power supply heatsink to optimize cooling performance
Display component fixed, precise positioning
Electrical equipment and engineering
Cable tray is fixed and neatly arranged
Transformer insulation reinforcement, safe and reliable
The distribution box is sealed, waterproof, dustproof and moisture-proof.
Secure electrical wiring to prevent loosening
IV. Transportation and Logistics
Freight packaging and transportation
Heavy cargo bundling to ensure transportation safety
Container compartment is sealed to prevent rain and dust
Strengthen the pallet to prevent cargo displacement
Logistics equipment maintenance and rapid repair
Vehicle maintenance and repair
Temporary body repair, emergency treatment
Quick and easy installation of the rain cover
Vehicle identification sticker is firmly and beautifully attached
Q1: Which surfaces can be used?
A: Suitable for various materials including metal, plastic, Polyester, and concrete, with a steel plate peel strength of 25N/25mm.
Q2: Do you provide samples?
A: We'll provide free samples (up to 2 specifications) and ship them within 3 working days.
Q3: How to store?
A: Store at 15-30℃ and 40-60%RH, avoid direct sunlight. Shelf life: 24 months.
