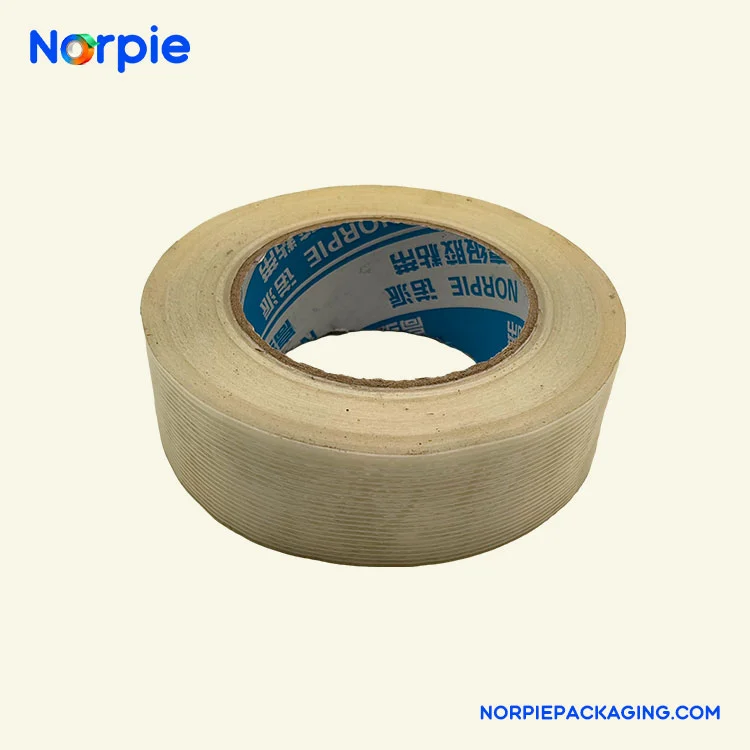

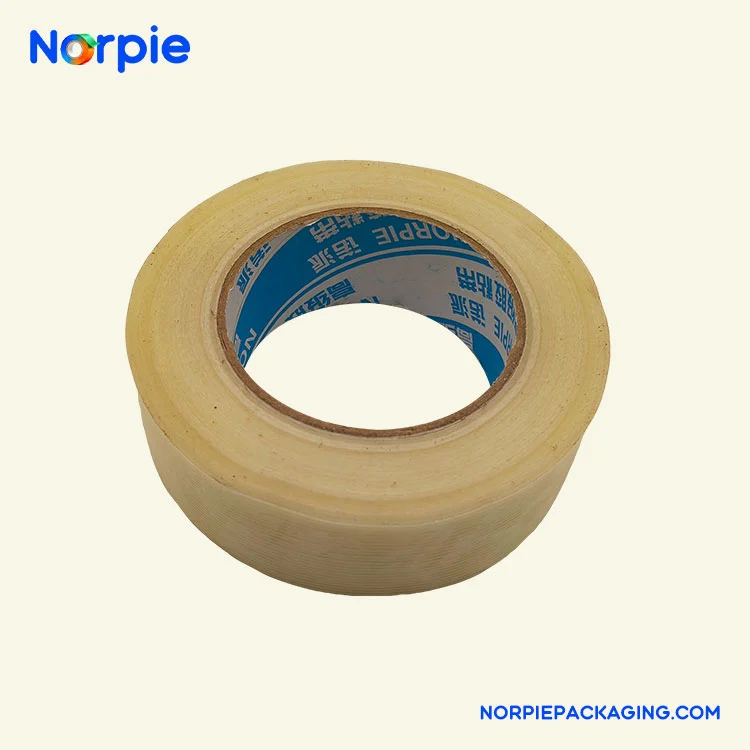

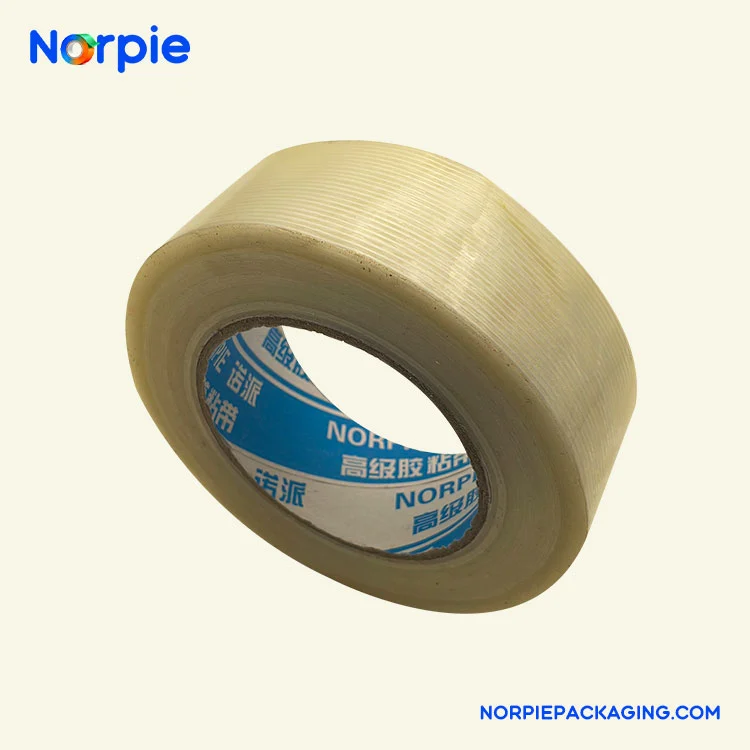

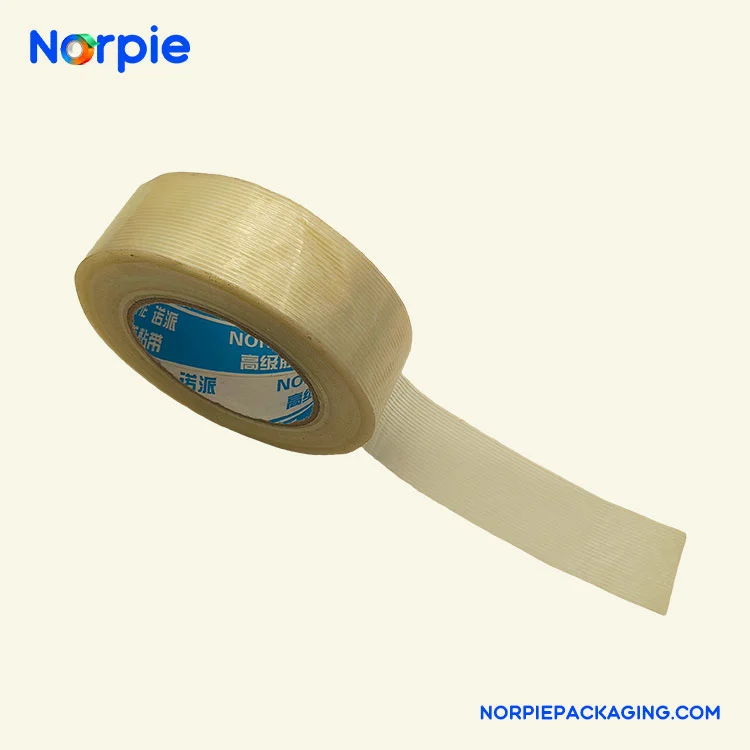

This Grid Fiber Tape is specifically designed for applications such as building waterproofing, pipe wrapping, and composite material reinforcement. We now offer free sample testing services to global customers. Online inquiry and bulk purchasing are supported, with a monthly production capacity of 350,000 square meters. Production will be scheduled according to agreed delivery dates. The Grid Fiber Tape has passed SGS testing and complies with RoHS standards. We provide professional technical support and customized solutions for our clients.
| Substrate specifications | |
| Material | Grid Polyester fiber cloth |
| Substrate thickness | 0.16mm ± 0.02mm |
| Grid density | 5×5 mesh/cm² |
| Color | Transparent |
| Adhesive specifications | |
| Type | Rubber type pressure sensitive adhesive |
| Coating thickness | 0.14mm ± 0.02mm |
| Total thickness | 0.30mm ± 0.03mm |
| physical property | |
| Tensile strength | ≥150N/cm in longitudinal direction and ≥130N/cm in transverse direction |
| 180° peel strength | 18N/25mm ± 2N |
| Adhesion | >72 hours |
| Initial viscosity | 16 steel ball |
| environmental performance | |
| Operating temperature | -40℃ to 80℃ |
| Damp heat resistance | 85℃/85%RH for 300 hours with performance retention rate>80% |
| Aging resistance | 500 hours of uv aging test |
1.Adhesive Performance Advantages
Rubber-based adhesives provide excellent initial adhesion for rapid fixation
Good adhesion to irregular surfaces
Stable adhesion ensures long-term bonding
2.Performance Advantages
The grid structure ensures smooth air discharge during construction
The substrate is flexible and can adapt to various complex shaped surfaces
Excellent low-temperature performance, flexible at-40℃
3.Construction Advantages
The initial tack is moderate, allowing construction adjustment
Grid is visible for accurate positioning
Easy to tear and convenient to use
4.Quality Advantage
SGS environmental testing
Provide test reports for each batch
Stable quality and good batch consistency
5.Economic Advantages
Service life up to 5 years
High construction efficiency and labor cost savings
1. Substrate Pretreatment Process
Grid Polyester fiber cloth inspection: Test the base material's tensile strength (≥150N/cm in longitudinal direction) and grid uniformity
Heat treatment: The component undergoes dimensional stabilization in a high-temperature furnace at 250°C
Surface treatment: The bonding strength between the fiber and the adhesive is enhanced by corona treatment
2. Adhesive Preparation System
Raw material preparation: natural rubber and synthetic rubber are mixed in proportion
Internal mixing process: 40 minutes of mixing in an internal mixer at 95℃
Viscosity control: Use a viscometer to ensure the adhesive's viscosity is 7500±500 cps.
3. Single-sided Coating and Composite Process
Precision coating: Utilizes a micro-embossed coating head with a speed of 15-25m/min
Backside lamination: The coated surface is laminated with a PET release film (0.05mm thick) under pressure 0.8-1.0MPa
Drying system: 5-stage oven with temperature gradient set at 60℃/80℃/100℃/85℃/70℃
4. Solidification and Cooling Process
Heat curing: 5 minutes at 95℃
Cooling and setting: The tape is set using a four-roll cooling system at 20±5℃
Online inspection: Real-time visual monitoring of PET backing surface quality
5. Post-processing Flow
Cutting process: Utilizes a high-precision circular blade cutter with ±0.15mm cutting accuracy
Reel control: Constant tension rewinding system (tension range 3-5N)
Packaging process: Packaging is completed in a clean environment with temperature of 23±2℃ and humidity of 50±5%
6. Quality Control System
Each Grid Fiber Tape is tested for initial and sustained adhesion
Perform batch sampling tests for PET backing peel strength (8-12N/25mm)
Conduct regular PET backing light transmittance tests (≥90%)
Wear resistance test on the back surface (≥500 cycles)
| Substrate specifications | |
| Material | Grid Polyester fiber cloth |
| Substrate thickness | 0.16mm ± 0.02mm |
| Grid density | 5×5 mesh/cm² |
| Weight | 110 g/m² ± 5% |
| Color | Transparent |
| Adhesive specifications | |
| Type | Rubber type pressure sensitive adhesive |
| Coating thickness | 0.14mm ± 0.02mm |
| Total thickness | 0.30mm ± 0.03mm |
| Solid content | ≥60% |
| Backplane specifications | |
| Material | PET film |
| Thickness | 0.05mm ± 0.005mm |
| Color | Transparent |
| Release force | 8-12 N/25mm |
| physical property | |
| Tensile strength | ≥150 N/cm in longitudinal direction and ≥130 N/cm in transverse direction |
| 180° peel strength (stainless steel) | 18 N/25mm ± 2N |
| Adhesion | >72 hours (1kg load, 23℃/50%RH) |
| Initial adhesion | No.16 steel ball (inclined ball rolling method) |
| Extension rate | ≤4% |
| environmental performance | |
| Temperature range | -40℃ to 80℃ |
| Short-term heat resistance | 100℃ (no more than 30 minutes) |
| Heat and humidity resistance | 85℃/85%RH for 300 hours, with performance retention over 80% |
| Resistance to ultraviolet aging | no substrate brittleness after 500 hours of testing |
| size of product | |
| Standard width | 12mm/18mm/24mm/36mm/48mm |
| Custom width | 8mm to 800mm |
| Roll length | Standard 33 meters per roll, customizable from 10 to 66 meters |
| Pipe diameter | 76mm (3-inch standard) |
| approval standards | |
| Environmental certification | SGS testing confirmed compliance with RoHS/REACH standards |
| Quality Management System | ISO 9001 certification |
| Storage and transportation | |
| Storage temperature | 15-30℃ |
| Humidity range | 40-60%RH |
| Shelf life | 18 months in original packaging |
| Transportation requirements | avoid sun and rain, prevent mechanical compression |
1. Industrial Manufacturing
Composite material processing
Carbon fiber/Polyester fiber laminate positioning
mechanical equipment
Label and sticker
Sensor and harness fixation
2. Building Decoration
interior finish
Decorative panel installation and fixation
Ceiling Material Positioning
Wall decoration material adhesion
Waterproofing Sheet Fixing
3. Automobile Manufacturing
Interior trim installation
Ceiling fabric fixed
Fixed parts
Wiring harness bundling and securing
Q1: What are the main features of this tape?
A: Featuring a grid Polyester fiber substrate, PET backing, and rubber-based pressure-sensitive adhesive, this material delivers excellent breathability and dimensional stability, with a tensile strength of 150N/cm.
Q2: What are the advantages of PET backing?
A: The PET backing ensures superior dimensional stability and temperature resistance (from-40°C to 80°C), with a smooth surface that is easy to unwind and withstands over 500 wear cycles.
Q3: What surfaces can be used?
A: Suitable for various surfaces such as metal, plastic, Polyester and composite materials, especially suitable for large-area adhesion requiring exhaust.
