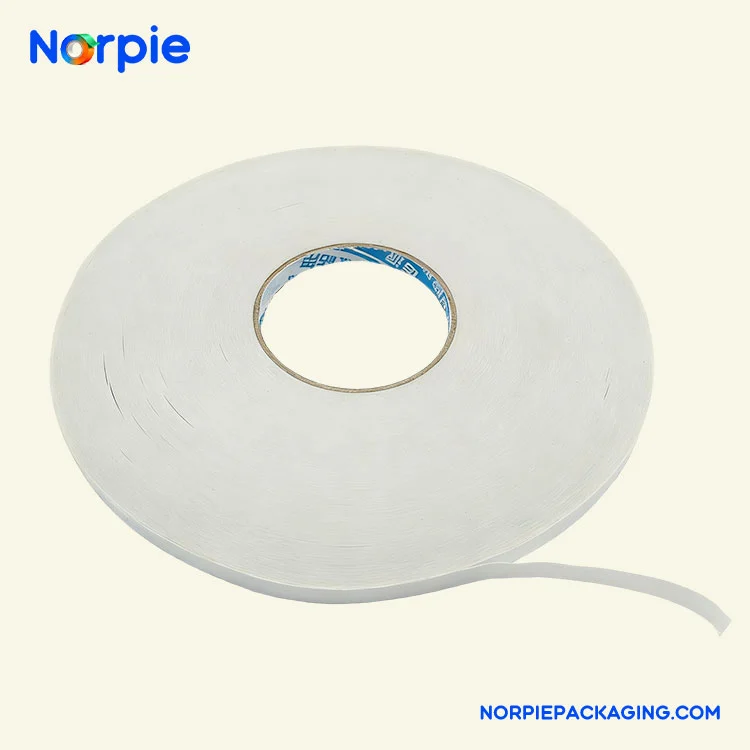

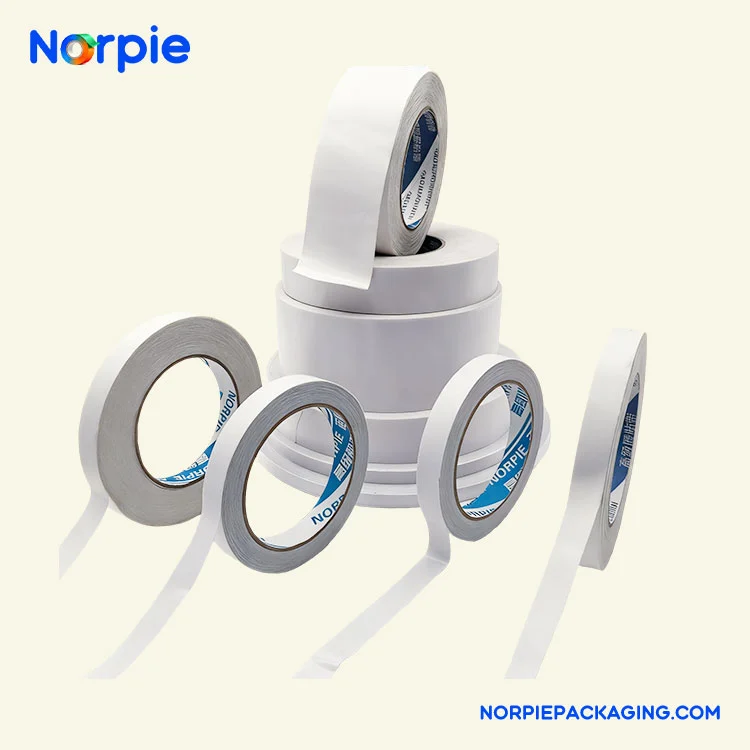

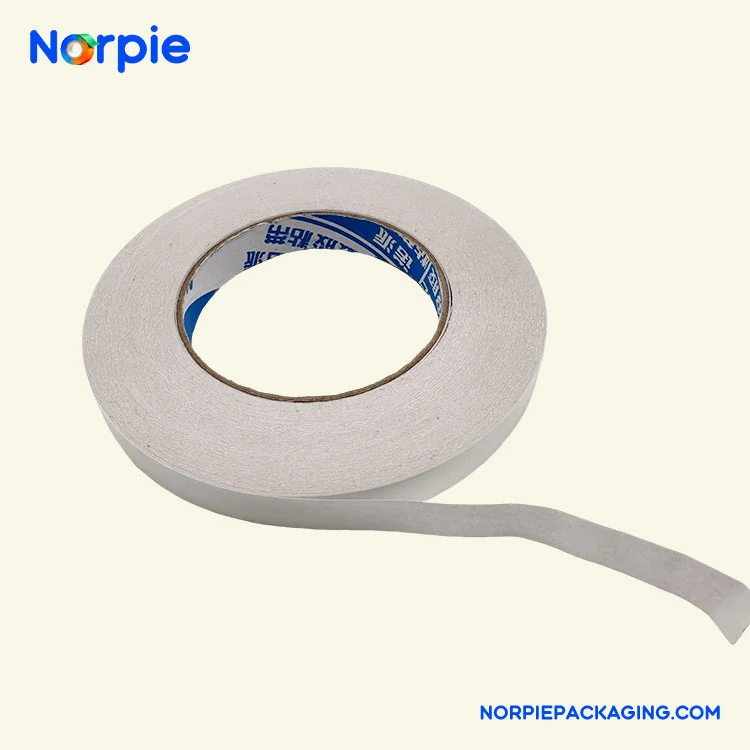

The Double Sided Embroidery Tape now offers free sample testing services to global customers, with online inquiry and bulk purchasing options. With a monthly production capacity of 600, 000 square meters, standard orders are delivered within 7 working days. The product has passed SGS testing and meets RoHS environmental standards. We provide professional technical support and customized services.
Substrate Specifications
Material: Special cotton paper (imported wood pulp)
Thickness: 0.15/0.25/0.35/0.50mm
Weight: 60-120g/m²
Color: Natural White/Dark (optional)
Adhesive Properties
Type: Hot melt pressure sensitive adhesive
Initial tack: 16-20 steel balls
Adhesion: ≥48 hours
180° peel strength: ≥18 N/25mm
Physical Property
Tensile strength: ≥4.0 kN/m in longitudinal direction
Extension rate: ≤15%
Breathability: ≥100s/100ml
Tear strength: ≥400mN
Environmental Performance
Operating temperature: -20℃ to 80℃
Short-term heat resistance: 100℃/30 minutes
Weather resistance: 24 months for indoor use
Ecological compliance: Certified by RoHS
Substrate Advantages
The paper substrate is flexible
Excellent breathability
Easy to tear and easy to process
Adhesive Advantages
Hot melt adhesive has strong initial adhesion
Quick location, improved efficiency
Reliable bonding
Use Advantages
Adapts to various surfaces
Easy to install
Remove residual glue
Economical and practical
1. Substrate Preparation Process
Pulp preparation:
Imported wood pulp ratio
Pulping control
Add enhancer
Paper forming:
Fourdrinier paper machine
Precise thickness control
Surface polishing
reprocessing:
hydrologic balance
Split and Re-roll
quality inspection
2. Hot Melt Adhesive Preparation
Raw material ratio:
thermoplastic elastomer
Viscosity-increasing resin
Operating Oil and Additives
Melted mixture:
Internal mixing
Temperature control 160-180℃
Homogeneity test
3. Coating Process
Substrate pretreatment:
Surface corona treatment
Preheat to 50℃
heat seeling coating:
Hot-melt coating head
Temperature control 150℃
Coating amount 15-25g/m²
Cool and set:
Roller cooling system
Precise temperature control
Stabilize performance
4. Subsequent Treatment
Split and Re-roll:
Digital Cutting
tension control
online testing
Packaging storage:
damp-proof packing
Batch Management
Quality Traceability
| standard specifications: | |
| Thickness: | 0.15/0.25/0.35/0.50mm |
| Width: | 500/1000/1200mm |
| Length: | 50m per roll |
| Inner diameter of coil: | 76mm |
| technical parameter: | |
| Base weight: | 60-120g/m² |
| Coating thickness: | 0.03-0.08mm/ surface |
| Initial tack: | 16-20 steel balls |
| Unwind force: | 3-8 N/25mm |
| performance index: | |
| Tensile strength: | ≥4.0 kN/m |
| Breathability: | ≥100s/100ml |
| Temperature resistance: | -20℃ to 80℃ |
| Shelf life: | 24 months |
1. Textile Embroidery and Apparel Industry
(1) Computerized Embroidery Applications: As an essential industry tool, computerized embroidery is employed for various textile materials (including cotton, denim, fleece, non-woven fabrics, and other coarse fiber textiles). This technology temporarily secures fabrics to embroidery machines, preventing fabric displacement and wrinkling during the embroidery process. It ensures precise pattern reproduction while allowing easy removal without adhesive residue. Additionally, some embroidered products can be reused.
(2) Clothing accessory bonding: Suitable for attaching embroidered badges, cartoon fabric patches, woven trademarks, heat transfer graphics, heat transfer diamonds, aluminum diamonds and other accessories to garments. The strong bonding can be achieved by heat press machine or household iron, without need for needle and thread sewing, improving processing efficiency.
(3) Fabric processing assistance: used for garment fabric edge fixation, multi-layer fabric composite positioning, and embroidery decoration positioning of leather products (such as leather jackets, leather bags), to avoid fabric sliding during processing and ensure process accuracy.
2. Footwear and Leather Goods Industry
(1) Footwear Manufacturing: For positioning embroidery patterns on shoe uppers, temporary adhesion of materials (such as leather, canvas, and foam), and alignment of shoe edges and decorations, ensuring both durability and ease of use.
(2) 2. Leather processing: Suitable for embroidery decoration and fixation of leather goods such as leather bags, belts and wallets, as well as temporary bonding of leather accessories (such as nameplates and hardware parts), without damaging the surface material of leather goods.
3. Arts and Crafts and Office Field
(1) Arts and crafts production: The material positioning and bonding for arts and crafts such as hand embroidery, cloth art ornaments and decorative paintings can accurately fix small parts and do not affect the integrity of the work after peeling off.
(2) Business office scenarios: Suitable for document binding, wall poster adhesion, paper assembly, and label fixation. Some Double Sided Embroidery Tapes can be repeatedly adhered, easy to tear, and flexible to use, meeting the temporary adhesion needs of daily office work.
Q1: What is the initial tack time of hot melt adhesive?
A: Initial bonding strength is achieved in 3-5 seconds.
Q2: What materials are applicable?
A: Porous materials such as paper, cloth, wood and plastic.
Q3: Delivery cycle?
A: 15 days for standard specifications, 15-20 days for customized specifications.
