We invite global customers to request free samples for testing. Send us your technical specs. We will provide custom solutions. We accept bulk orders worldwide. You can get quotes online fast. Special pricing is available. Our monthly output is 600,000 square meters. Orders are processed quickly. Priority shipping is offered. Delivery is on time. The Crown DS513 Double-sided Tape is tested by SGS. It meets international RoHS standards. We now offer agency partnerships worldwide. We give tailored support to every international customer.
1. Base Material Properties

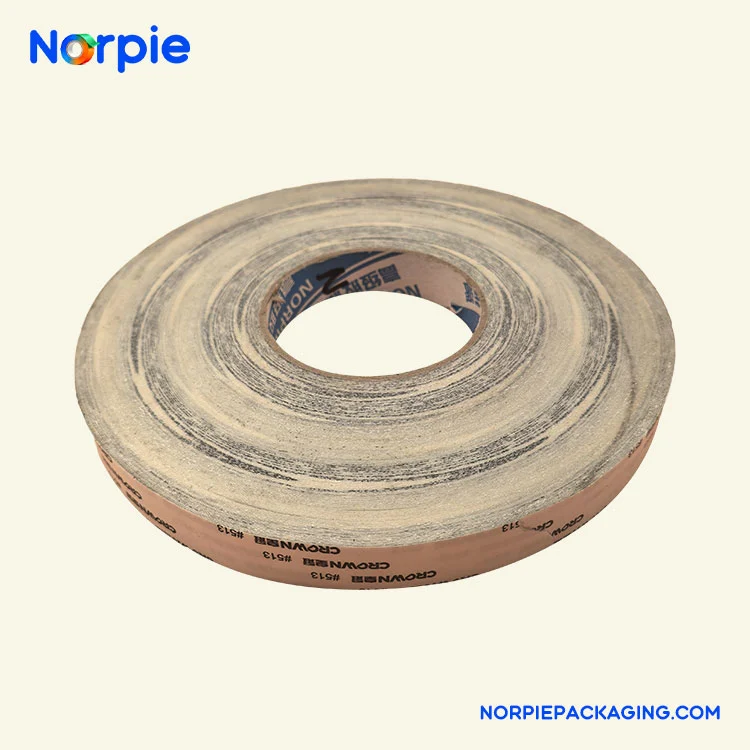

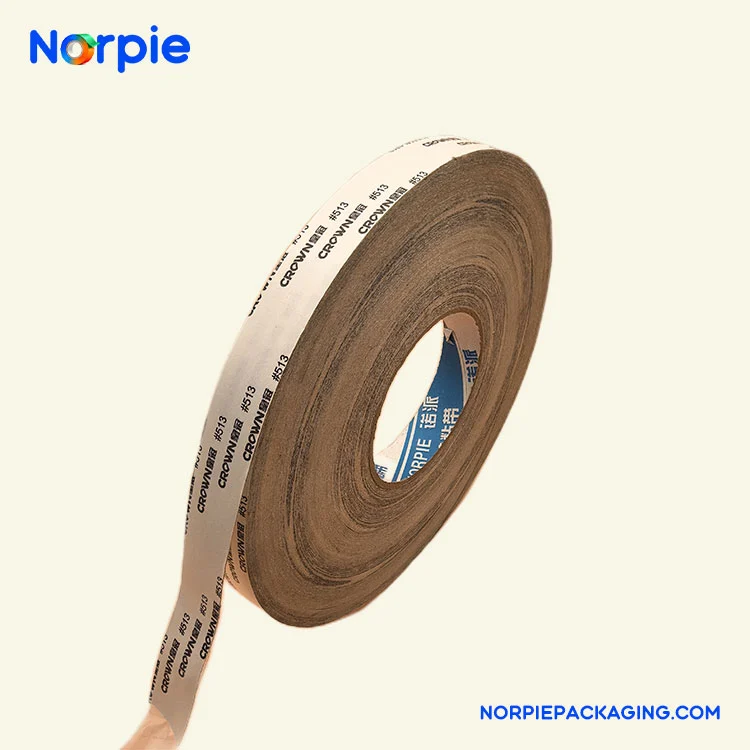

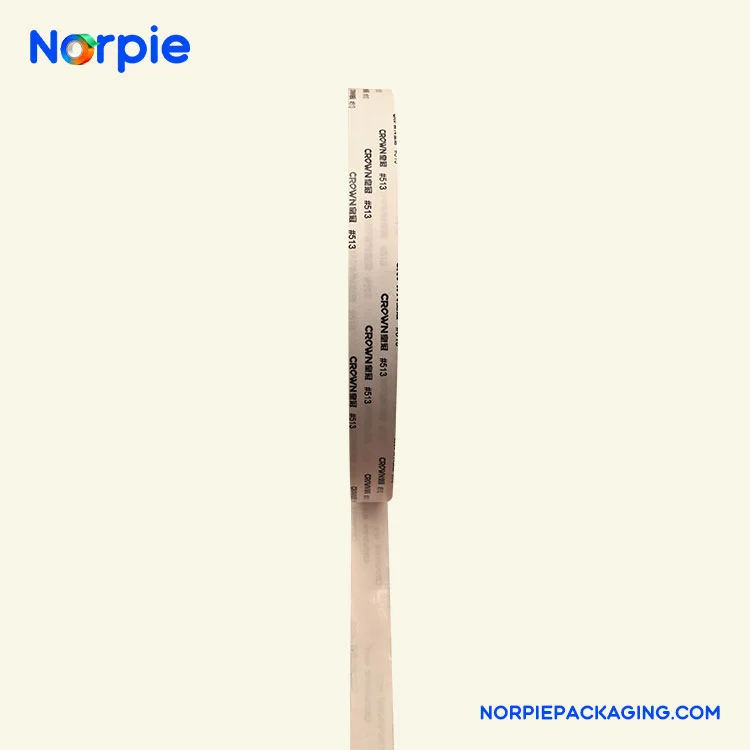

The Crown DS513 Double-sided Tape uses a 0.08mm specialty cotton paper substrate. It weighs 65g/㎡.
The longitudinal tensile strength is 90N/cm or higher. The transverse strength is 80N/cm or higher.
The elongation rate is 6% or less. This keeps the material stable during processing.
The substrate can handle temperatures up to 160°C for 30 minutes.
2. Adhesion
180° peel strength (stainless steel): 22±2N/25mm
Adhesion:>72h (1kg load, 23℃)
Initial adhesion: No.10 steel ball (inclined ball rolling method)
Minimum peel strength of ABS/PC material ≥12N/25mm
3. Processing Characteristics
Supports precision die-cutting with a minimum die-cutting contour of 1.5mm
Release force: 8-12N/25mm, suitable for automated production lines
The substrate elongation rate is stable, with a cutting accuracy of ±0.1mm.
4. Environmental Adaptability
Operating temperature range: -30℃ to 100℃
Damp heat resistance: After 500 hours at 85℃/85%RH, the bonding strength retention rate remains over 85%
Good corrosion resistance was obtained through 48-hour salt spray test
5. Security Certification
SGS testing confirms compliance with RoHS/REACH standards
VOC emissions <3μg/g (tested at 40℃)
1. Substrate Structure Characteristics
I. Substrate pretreatment process
Raw material testing: Conduct tensile strength test on 0.08mm cotton paper substrate (≥90N/cm in longitudinal direction, ≥80N/cm in transverse direction)
Corona treatment: The substrate surface tension is elevated to 52-54 dyn/cm using a corona treatment device.
Preheating and setting: The substrate undergoes stabilization treatment on a 85℃ preheating roller to eliminate internal stresses.
2. Adhesive Preparation System
Raw material ratio: Acrylate monomer and tackifier resin are pre-mixed in a specific proportion
Reactor synthesis: Conduct a 5-hour polymerization reaction at a constant temperature of 88℃
Viscosity control: Use a rotational viscometer to ensure the adhesive viscosity is within the range of 3800±500 cps.
3. Precision Coating Process
Double-sided coating: Utilizes a micro-embossed coating head with a speed of 18-28m/min
Thickness control: Both sides of the adhesive layer are 0.06mm thick, with a total thickness of 0.20±0.02mm
Drying system: Four-stage drying oven with temperature gradient set at 65℃/85℃/105℃/80℃
4. Composite Machining Process
Release film lamination: The Crown DS513 Double-sided Tape is joined with a silicone oil release film. The release force is 8-12g/in.
Maturation: The material stays in a 45℃ chamber for 36 hours. This completes the cross-linking reaction.
Quality Control: An online system checks coating thickness all the time. The tolerance is ±2.5%.
5. Post-Processing Flow
Cutting process: A high-precision circular blade cutter is used. The cutting accuracy is ±0.15mm.
Reel control: The rewinding system keeps tension steady. The tension range is 2-4N.
Packaging environment: Packaging is done in a clean area. Temperature is 23±2℃. Humidity is 50±5%RH.
6. Quality Control System
Each product roll undergoes initial adhesion (10# steel ball) and adhesion retention (>72h) testing.
Each batch undergoes high-low temperature cycling tests (-30℃ to 100℃).
Send samples regularly for third-party testing to ensure compliance with international standards
Substrate Specifications
Material: special cotton paper
Substrate thickness: 0.08mm ± 0.01mm
Base weight: 65 g/m² ± 3%
Color: Natural cotton paper
Adhesive Specifications
Type: High performance acrylic pressure sensitive adhesive
Coating thickness: 0.06mm/face ± 0.003mm
Total thickness: 0.20mm ± 0.015mm
Solid content: ≥62%
Physical Property
180° peel strength (stainless steel): 22 N/25mm ± 1.5N
Adhesion:>72 hours (1kg load, 23℃/50%RH)
Initial adhesion: No.10 steel ball (inclined ball rolling method)
Tensile strength: ≥90N/cm in longitudinal direction, ≥80N/cm in transverse direction
Environmental Performance
Temperature range: -30℃ to 100℃
Short-term heat resistance: 120℃ (no more than 30 minutes)
Damp heat resistance: 85%RH at 85°C for 500 hours, with performance retention over 85%
Resistant to ultraviolet aging: no yellowing or powdering after 600 hours of testing
Size of Product
Standard width: 5mm/10mm/15mm/20mm/25mm/50mm
Custom width: 5mm to 1240mm
Roll length: Standard 50 meters per roll, customizable from 10 to 150 meters
Pipe diameter: 76mm (3-inch standard)
Approval Standards
Environmental certification: SGS testing confirmed compliance with RoHS/REACH standards
VOC emission: <3μg/g (tested at 40℃)
Storage and Transportation
Storage temperature: 15-30℃
Humidity range: 40-60%RH
Shelf life: 24 months in original packaging
Transportation requirements: avoid sun and rain, prevent mechanical compression
Q1: What is the minimum slice width?
A: The minimum cutting width is 5mm, and the maximum can reach 1240mm.
Q2: How about the temperature resistance?
A: Operating temperature ranges from-30℃ to 100℃, with short-term resistance to 120℃ (30 minutes)
Q3: How to save products?
A: Store at 15-30℃ and 40-60%RH for 24 months.
